WARP & Warpgate: the evolution of IBM i development

Leer esto en español

WARP is a high-level programming language with declarative syntax, designed to optimize and speed up development on IBM i (AS/400) environments. Instead of hand-writing extensive RPGLE code or DDS definitions, WARP lets you define programs, interactive screens and tables in clean, expressive .warp files.

Through the Warpgate compiler, WARP code is automatically transformed into highly optimized RPGLE and DDS source, ready to run on the system.

Key features

• High-performance engineering: the Warpgate compiler is built 100% in Rust, guaranteeing ultra-fast compilation speed, memory safety and native portability across Windows, GNU/Linux and macOS.
• CI/CD pipeline integration: being a native, cross-platform executable capable of building from the command line, it integrates easily into continuous integration/deployment pipelines (GitHub Actions, GitLab CI, Azure DevOps, etc.), bringing modern DevOps practices to the IBM i platform.
• Multi-protocol remote deployment: transfers and deploys directly to remote IBM i servers over SSH, SFTP and FTP, configurable from the project file (see @Connection/Protocol).
• Modernization and productivity: drastically reduces the lines of code needed and removes the verbosity of traditional RPG, streamlining development teams’ workflow.
• Continuous evolution: constantly improving and gaining new language features and code generation capabilities.

Installation

Warpgate is distributed as a VSCode extension, available on the Visual Studio Marketplace:

1. Open VSCode → Extensions tab (Ctrl+Shift+X).
2. Search for “WaRPGate for IBM i” (publisher Software House) and install it.

The extension already includes the compiler for Windows, GNU/Linux and macOS — no separate install needed. To generate and deploy code (generate/build/reverse) a license is required — see Licensing.

Note for macOS: the compiler is not signed with an Apple certificate, so macOS may block its first run with a warning that the developer cannot be verified. To allow it, run this once in Terminal, replacing the path with the location of the binary:

xattr -d com.apple.quarantine /path/to/warpgate

Built by Software House

WARP and Warpgate are designed, developed and maintained by Giuliano Gonzales Zeballos, creator and lead architect at Software House, a firm dedicated to software engineering, systems architecture and modernization solutions for enterprise environments.

About this book

This book documents:

• The guides: how to build, step by step, each kind of object (Program, Screen, Table) and the bigger features (DataGridView, Member/Export reports).
• The language reference: every section (@Properties, @Variables, @Source, …), every data type, every control statement and every builtin function, with its exact syntax and validation rules.

What is a .warp file?

A .warp file describes one object: a Program (business logic, with or without printed output), a Screen (an interactive 5250 screen) or a table (a DDS physical file). The type is declared in @Properties/Type.

A .warp file is organized into top-level sections, marked with @Name { ... }:

@Documentation {
    Author Name : "Programmer Name"
}
@Properties {
    Type        : Program
    Name        : PTESTFN
    Description : "Minimal example"
}
@References {
    Programs = []
    Screens  = []
    Tables   = []
}
@Variables {
    global {
        Username char(10)
    }
}
@Parameters {
}
@Source {
    &Username = USERID()
}

Which sections are valid, and in what order, depends on Type — a Program has @Layout/@Source, a table has @Structure/@Fields/@Indexes, a Screen has @Layout/@Source but no @Structure. Each reference chapter details which file type each section applies to.

How to compile

The compiler is a CLI binary (cli, distributed as warpgate/warpgate.exe inside the VSCode extension) that takes a project (.warproj) and a source file:

warpgate --project my-project.warproj --source programs/PMYPROG.warp --action validate
warpgate --project my-project.warproj --source programs/PMYPROG.warp --action generate
warpgate --project my-project.warproj --source programs/PMYPROG.warp --action build --profile Prod

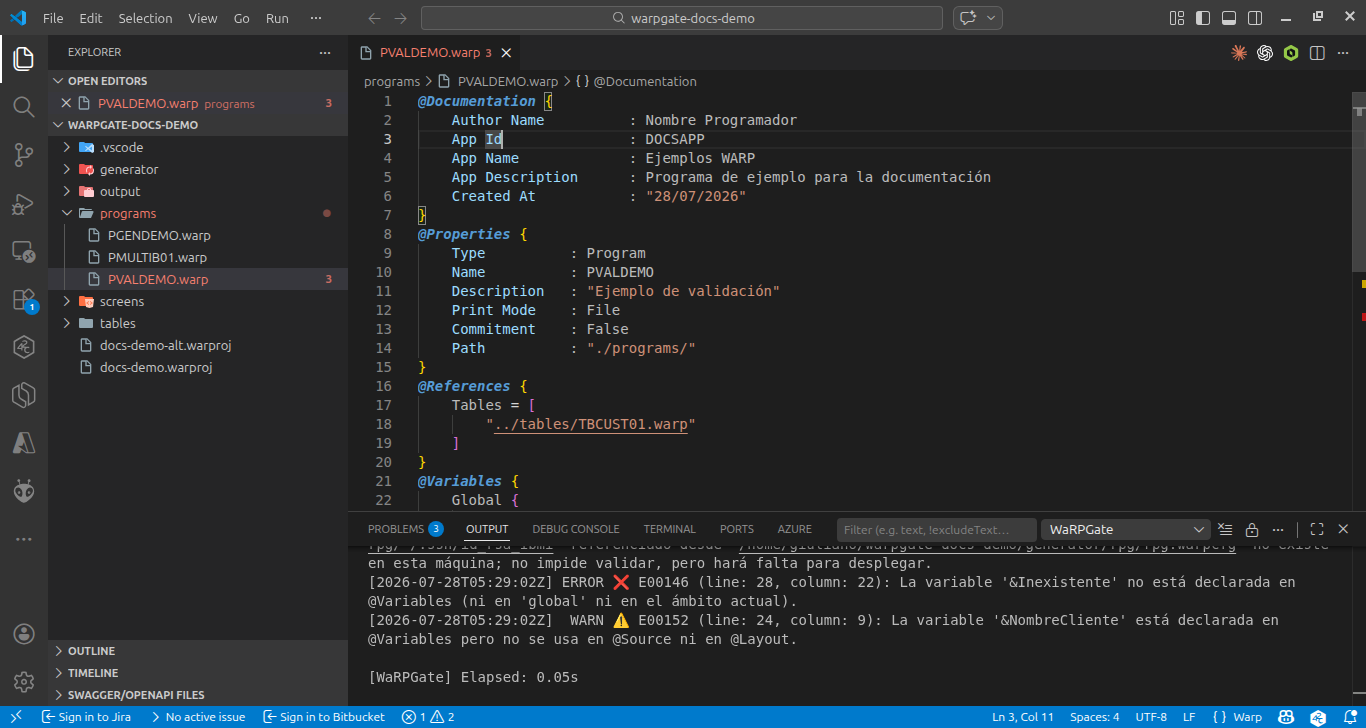

• validate: only runs semantic analysis (the same thing the VSCode extension triggers on save) — never touches the IBM i.

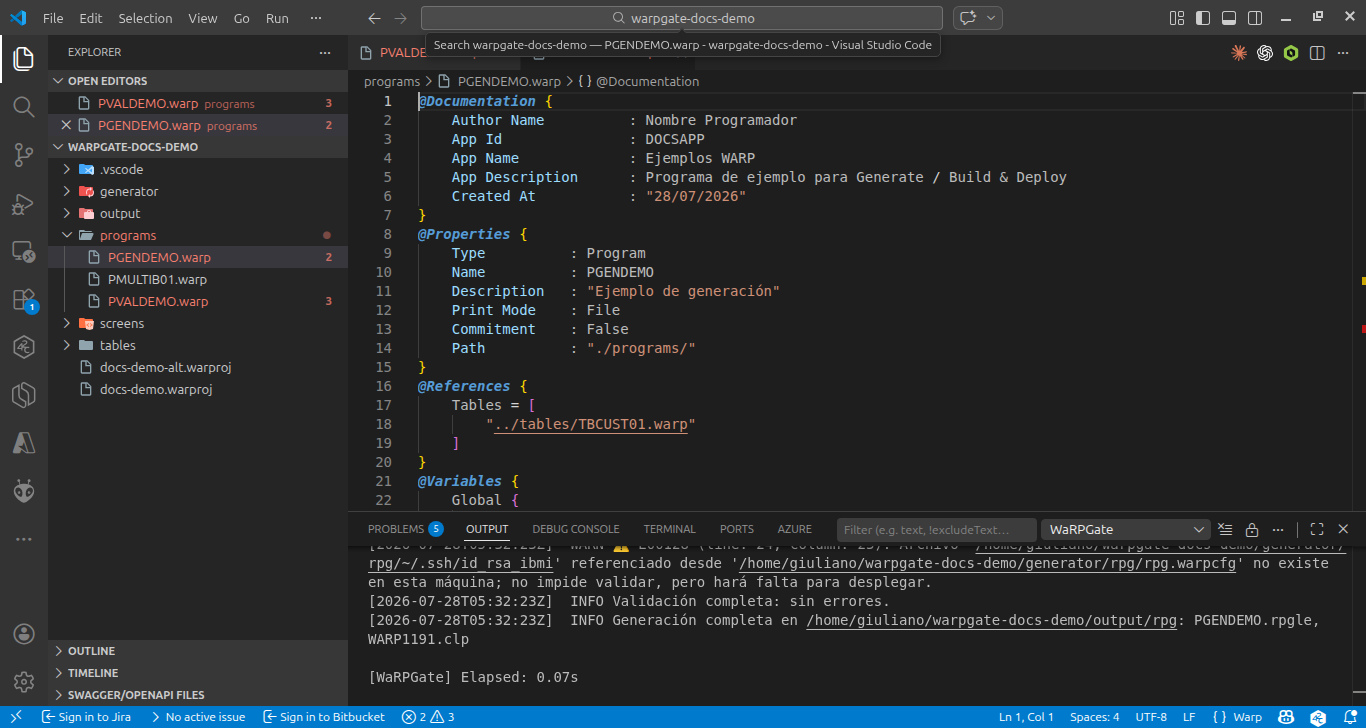

• generate: generates RPGLE/DDS/CL and writes it to Output — purely local, never connects to the IBM i (even though the generated CL already references remote paths, based on @Connection/@Deployment).

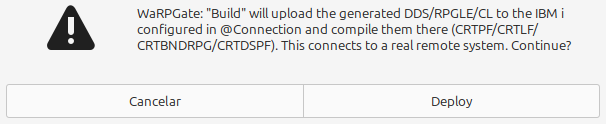

• build: does the same as generate, and additionally uploads and compiles the generated code on the IBM i configured in @Connection (CRTPF/CRTLF/CRTBNDRPG/CRTDSPF, depending on the type).
• reverse: reconstructs a table .warp file from an existing DDS on the IBM i (reverse engineering).

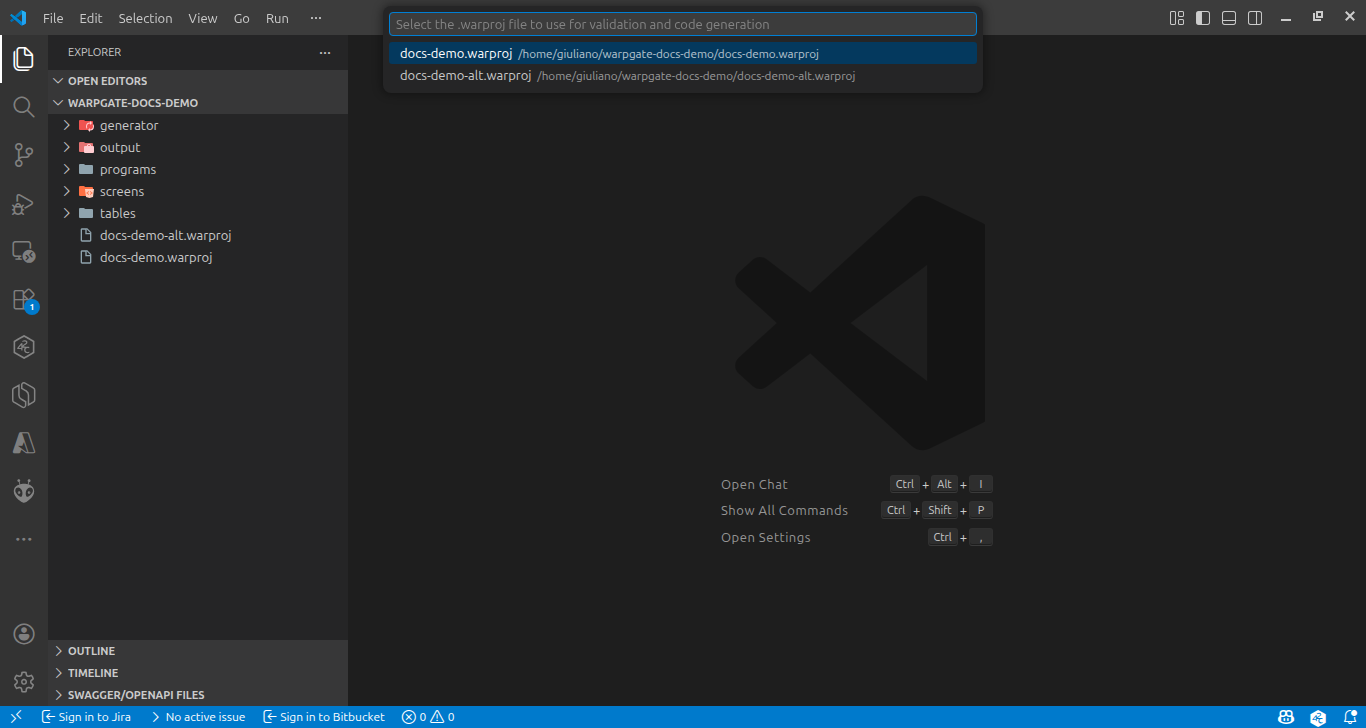

When the .warpcfg declares more than one @Profile (Dev/UAT/Prod, see Project file), generate/build/reverse and license-status need to know which one to use — either with the --profile <Name> flag, or, if omitted, with Default Profile in @Project. validate ignores this flag entirely.

See Project file for the .warproj/.warpcfg format.

Getting started: your first Program

A Program is the basic unit of business logic: it receives parameters, does something (reads/writes tables, computes, calls other programs) and finishes. It doesn’t have to show a screen or print anything.

1. Minimal file

@Documentation {
    Author Name : "Your Name"
}
@Properties {
    Type        : Program
    Name        : PGREET
    Description : "Minimal greeting program"
}
@References {
    Programs = []
    Screens  = []
    Tables   = []
}
@Variables {
    global {
        Username char(10)
        Greeting char(30)
    }
}
@Parameters {
}
@Source {
    &Username = USERID()
    &Greeting = "Hello, " + &Username
}

This is already a valid .warp file: it declares the object (@Properties), its variables (@Variables) and its logic (@Source). @References/@Parameters are empty because this program doesn’t depend on other objects or receive parameters.

2. Adding parameters

A Program receives parameters declared in @Parameters, referencing variables already declared in @Variables/global:

@Variables {
    global {
        MyDate  date
        MyTime  char(8)
    }
}
@Parameters {
    inout:&MyDate,
    inout:&MyTime
}

The modes are in (input only), inout (input and can be modified) and out (output only) — see @Parameters.

3. Calling another program

To call an external program, add it to @References/Programs and use Call(...):

@References {
    Programs = ["../programs/POTHER.warp"]
}
@Source {
    Call(POTHER, &MyDate, &MyTime)
}

4. Local procedures and functions

Procedure/Function live inside @Source, with their own variables in @Variables (one entry per procedure/function name, in addition to global):

@Variables {
    global {
        Username char(10)
    }
    Greet {
        name char(10)
    }
}
@Source {
    Function Greet(&name) char(20)
        Return "Hello " + &name
    EndFunc

    &Username = USERID()
    Message("Welcome", Info)  // only valid in Screen; use Print() in Program
}

To call a Procedure (no return value) use Do Name(...); a Function (with a return value) is called as an expression: &variable = Name(...).

5. Next steps

• If your program needs to read/write a table: Tables.
• If it needs to show an interactive screen: Screens.
• If it needs to generate a report to a text file: Reports with Member()/Export().

For the full syntax of each section, see the Language reference.

Tables: @Structure, @Fields, @Indexes

A table .warp file describes a DDS physical file: its columns and its keyed access paths. It’s referenced from a Program/Screen via @References/Tables.

1. Minimal file

@Properties {
    Type : "Table"
}
@Structure {
    Name        : "GRIDDEMO"
    Description : "Sample customers"
    @Fields {
        CustCode char(6)   Description("Customer code")
        Name     char(20)  Description("Name")
        City     char(15)  Description("City")
    }
    @Indexes {
        PrimaryKey ( GRIDDEMOPK, [CustCode] )
        Index ( GRIDDMNOM, [Name] )
    }
}

• @Fields: one Name type(...) line per column. Only char/number/date — see Data types. Available modifiers: Description(...), Default(...), AllowNull.
• @Indexes: PrimaryKey (required, its fields can’t be AllowNull), Unique, Index — each one as Kind(Name, [Field, ...], "optional description").

2. Referencing it from a Program

@References {
    Tables = ["../tables/TLGRIDDEMO.warp"]
}

The path is relative to the file that references it. Once referenced, its fields become available as bare identifiers inside a For Each/New (see below), and as field(FieldName) in @Variables to inherit its type.

3. Reading rows: For Each In

@Source {
    For Each In GRIDDEMO Index GRIDDMNOM
    Where CustCode = &VCustCode
        &VName = Name
        &VCity = City
    When None
        Message("Customer not found", Error)
    EndFor
}

Index picks the access path (defaults to the sequential-access one if omitted); Where filters by equality; When None runs if no row was found.

Joining tables: Join In

To read data from a related table, add Join In under the For Each. The joined table is read by its PrimaryKey for each iterated row:

For Each In Orders
Join In Customers On CustCode = CustCode
    &VName = CustName
EndFor

Without On, the key columns of the joined table must exist with the same name in the iterated table. If there is no match, the row is not skipped and the joined fields are blank or zero. They are read-only. Full details in @Source: control statements.

4. Inserting rows: New

@Source {
    New In GRIDDEMO
        CustCode = &VCustCode
        Name     = &VName
        City     = &VCity
    When Duplicate
        Message("That code already exists", Error)
    EndNew
}

When Duplicate runs if the row already exists: the New looks it up by the table’s PrimaryKey (which must be in @Indexes) and, if found, runs the block on that row and updates it if the block assigned fields. The block accepts any statement (If, While, Do Case, etc.). Details in @Source: control statements.

5. Extended documentation

A table can also carry @Documentation (nested inside @Structure, unlike a Program where it goes at the top level) with @Author, @Application, @Module, @Repository and @History (@Creation + @Change per changelog entry) — see @Structure, @Fields, @Indexes for the full detail of each sub-section.

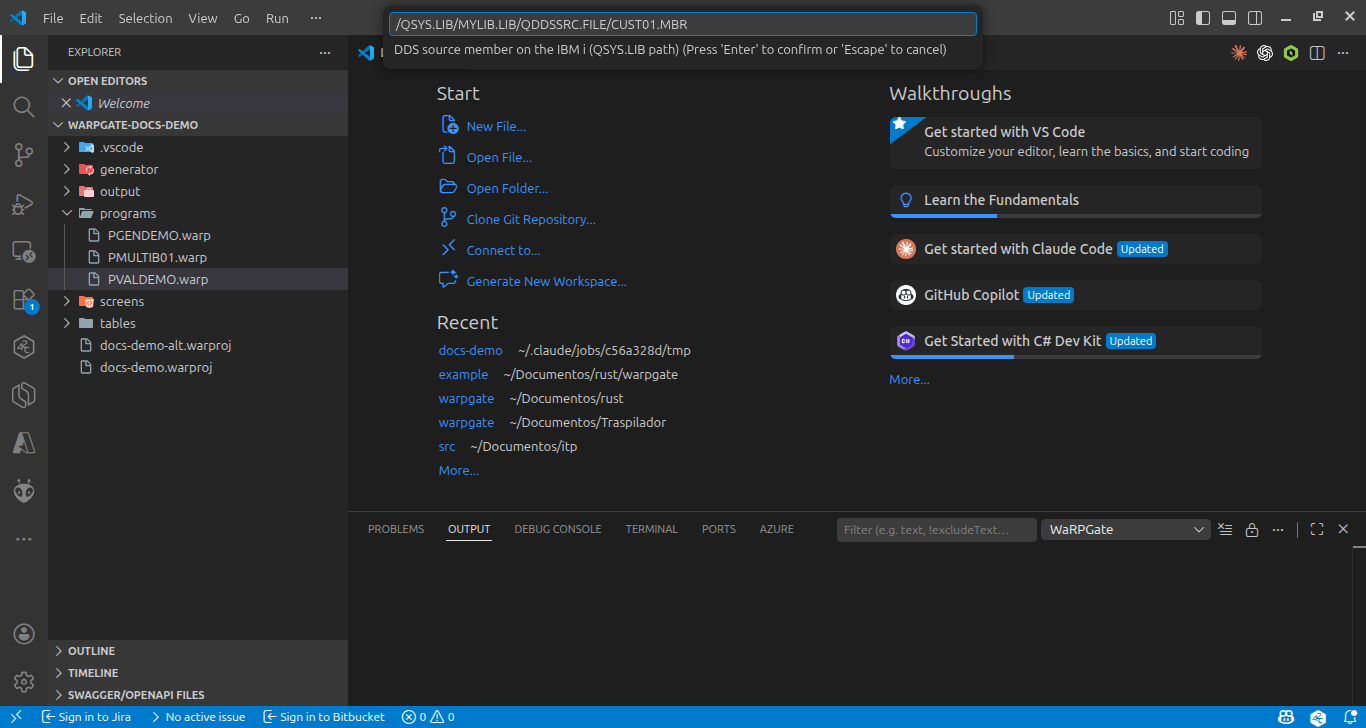

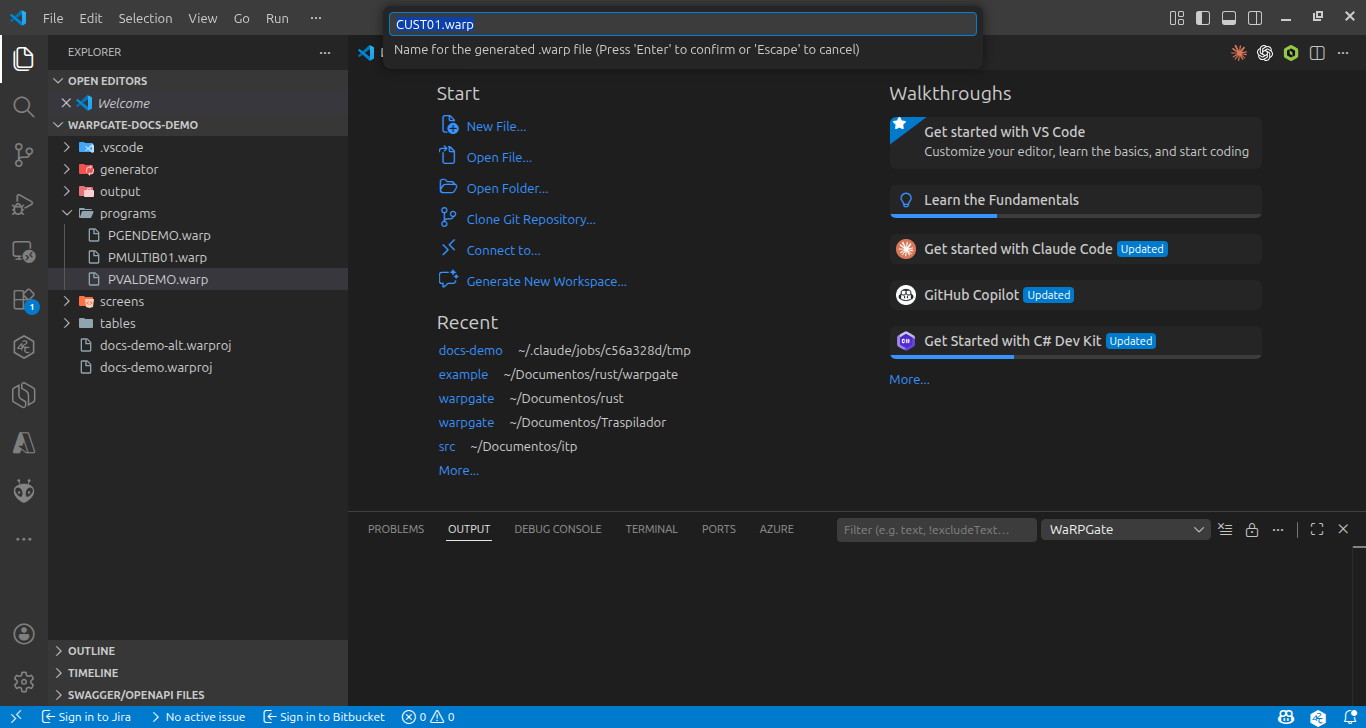

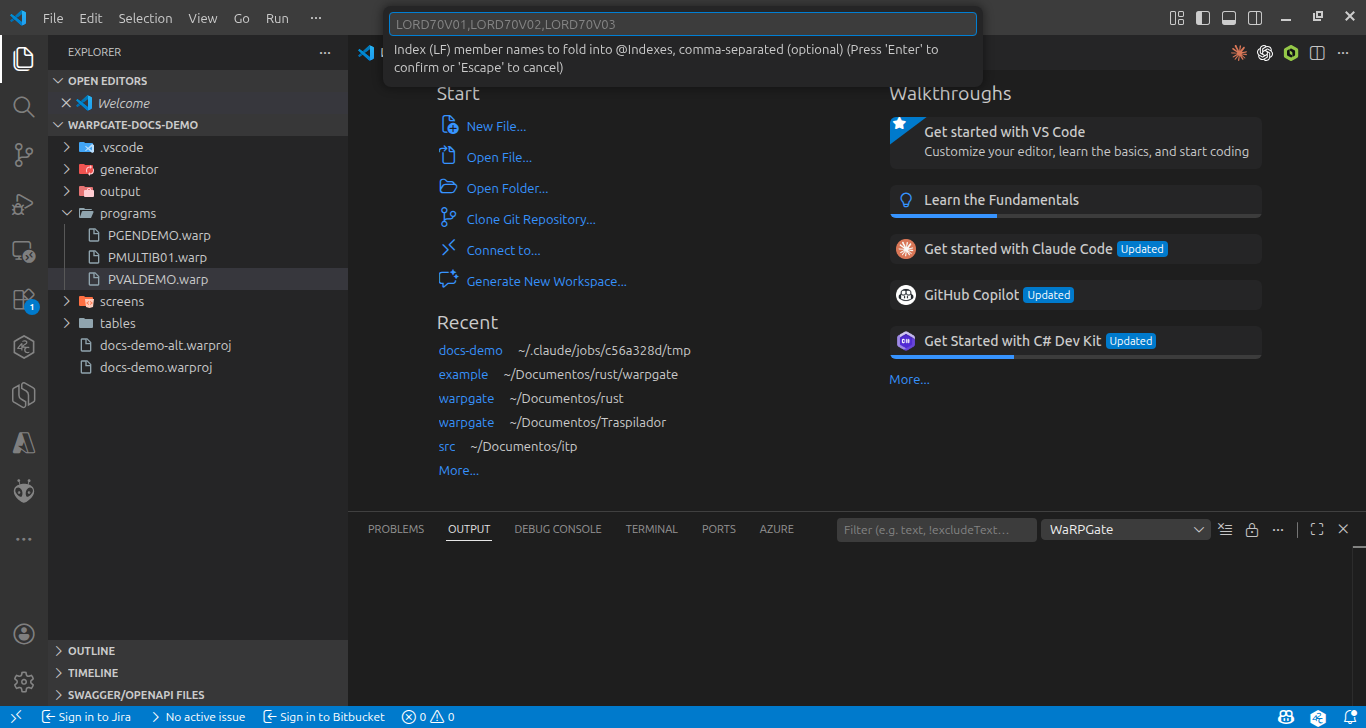

6. Reverse engineering from an existing DDS

If the table already exists on the IBM i, there’s no need to write it by hand: the WaRPGate: Reverse Engineer command in the VSCode extension connects to the IBM i, reads the DDS (and optionally its associated LFs as @Indexes) and generates the corresponding .warp file. If the record format of the downloaded DDS differs from the table name, Record Format : "X" is written; if it is the same, it is omitted.

DDS comments (lines with * in column 7) are kept too: the file header ones become // lines above @Structure, and those preceding a group of fields become // lines right before the group’s first field. Decorative asterisk borders are left out.

Screens: @Layout and Screen

A Screen is an interactive 5250 screen: it defines its layout (@Layout) and reacts to user events (@Source).

1. Minimal structure

@Properties {
    Type : Screen
    Name : SFORM01
    Description : "Sample screen"
    Path : Screens
}
@References {
    Tables = ["../tables/TLADD50.warp"]
}
@Variables {
    Global {
        Username char(10)
        MyDate   Date
    }
}
@Parameters {
}
@Layout {
    @Label(1,2,&Username)
    @Label(1,70,&MyDate)
    @Input("txtRequestNo", 3, 1, "Request No.: ", &RequestNo, true)
}
@Source {
    Event Init
        &Username = UserId()
        &MyDate   = Today()
    EndEvent
}

Unlike a Program, a Screen doesn’t have its own @Structure — it only references tables to read/write.

Screen parameters

The @Parameters block in the example is empty, but a Screen (full screen or Popup) can declare it just like a Program: @Parameters { in:&X, inout:&Y, out:&Z }. Values are available from Event Init and the Screen is invoked with Call(Name, ...). In a Popup it is used to receive data and return the user’s selection. See @Parameters.

2. @Layout controls

• Label(x, y, text): static text/variable. x,y = 1,1 (exact corner) is forbidden — DDS rejects it.

• Input("Name", x, y, text, &Variable, enabled): editable field. "Name" is what CurrentInput() returns when the cursor lands there. enabled is optional (default true): a literal, &Variable, a Function() returning number, or a full condition (Not &Locked = 1 And &Status <> "9").

  If the variable is char/varchar, the field accepts lowercase and the program receives what was typed as is (Lima, not LIMA); to ignore the difference when comparing, use Upper(&field). Numeric, date and time Input fields are unchanged.

• DataGridView("Name", x, y, rows)[...]: grid — see DataGridView.

Control names can be prefixed with @ (@Label, @Input) or not — it’s purely stylistic, same meaning.

Available width and error E00353

No element may end beyond the last column of the screen: 80 by default, 132 if the project declares that size, or the window width in a popup. Ending exactly on the last column fits. If it does not fit, the compiler reports E00353 (IBM i would reject the field or split it across two rows). The width of each element is computed as follows:

• Label: the length of the text.

• Input: the label + 1 space + the width of the variable.

• DataGridView: the sum of the widths of its visible columns, plus the gap between each pair of contiguous columns. A column’s width is the larger of the header and the data. The gap is the declared separator or, if there is none or it is shorter, at least 1 position (a space). Hidden columns do not count: they are declared as hidden subfile fields, with no line or position on the screen.

  In 5250 every field carries an attribute byte right before its first character; without that free position, a column’s attribute byte would overlap the last character of the previous one (CPD7866) and the column would not be displayed. So, with no separator, each column sits one position further right than the previous one.

  Example: three columns of 6, 20 and 15 positions, with no separator, take 6 + 1 + 20 + 1 + 15 = 43 positions; with the grid at column 2 they end at column 44.

The column where the element ends is x + width - 1; if it exceeds the maximum, shorten the text or the widths, or move the element to the left.

Color and attributes with Style

Label, Input and Column (of a DataGridView) accept one or more trailing Style(...) entries with a color (Green, White, Red, Blue, Yellow, Pink, Turquoise) and attributes (Reverse, High, Underline, Blink, Hidden). A Style can end with a condition, in which case it applies only while the condition holds:

Label(1,2,&Title,Style(Reverse,High))
Label(5,2,&Desc,Style(Red,&Status = "9"),Style(Green))
Input("TxtOp",7,2,"Operation:",&Op,Not &Locked = 1,Style(Yellow,Underline))

Each element accepts at most one Style without a condition and up to three with a condition. In a Column the condition is evaluated per row, at the time of LoadRow(), with the values the variables hold at that instant (assign them before LoadRow()); the color is stored with the row:

Column("Quantity",&VQty,Style(Red,High,&VQty > 100),Style(Green))

Per-row dynamic enabling (a conditional Column(..., Input)) does not exist yet. Full details in @Layout: Style.

3. Standard events

@Source {
    Event Init
        &Username = UserId()
    EndEvent

    Event Load
        For Each In LADD50 Index LADD5010
        Where SPT25COUNTRY = &nCountry
            &cState = ADSTS50
            LoadRow()
        EndFor
    EndEvent

    Event Enter
        &Control = CurrentInput()
        Message("Active control: " + &Control, Info)
    EndEvent
}

Two statements help control the screen from any event: &Variable.SetFocus() places the cursor on an Input, and Refresh / Refresh Keep reload the DataGridView. See @Source: Event and Screen.

4. Custom function keys

Besides the standard events, you can attach an event to any F1-F24 key (F13-F24 via Shift):

@Source {
    Event 'FindCustomer' 4
        Message("F4 was pressed", Info)
    EndEvent
}

By default, the function-key line shows the event name (F4=FindCustomer). To show a different text, add it in quotes after the key (up to 20 characters):

Event 'FindCustomer' 4 "Find"

The event name ('FindCustomer') becomes the name of an RPG subprocedure, so it must be an identifier: letters, digits and _, starting with a letter (E00357). Text with spaces goes in the third value: Event 'Delete' 7 "Delete row".

This text takes precedence over the one declared in the project’s .warpcfg @FunctionKeys — see Project.

Position and color of the key line

By default the line is drawn at Rows - 1 (row 23 on a 24x80 screen; in a popup, the window’s last row minus one). Function Keys Row picks another row, and Function Keys Color colors the whole line. Both are declared in @GeneratorConfig/@Screen (project-wide) or in a Screen’s @Properties (that object only, and it wins over the project):

@Properties {
    Type               : Screen
    Name               : SCUSTOMERS
    Function Keys Row  : 22
    Function Keys Color: Blue
}

The row must be between 1 and Rows - 1 (the last one is kept for messages); otherwise E00346 is reported. The compiler does not warn if the row overlaps the @Layout: leave it free. An invalid color gives E00347.

Each Event can carry its own color at the end, which wins over the line’s:

Event 'Delete' 7 "Delete" Red

The colors are Green, White, Red, Blue, Yellow, Pink and Turquoise.

Key rotation with F24

If F24 is declared in @FunctionKeys (for example F24 : "More keys") and no Event uses it, the keys that do not fit in one line are split into rotating sets. With F3 : "Exit", F5 : "Refresh" and the events Event 'Home' 6, Event 'Output' 7, Event 'Cursor' 8 and Event 'After' 9 "After Refresh":

Set 1: F3=Exit  F5=Refresh  F6=Home  F7=Output  F8=Cursor  F24=More keys
Set 2: F9=After Refresh  F24=More keys

Each set fits in a single line (screen width minus 2 columns; the window width in a popup), keys are ordered by number and every set ends with F24. Pressing F24 shows the next set and after the last one it returns to the first; the keypress only changes the key line and does not run any event. If all keys fit in one line there is no rotation. If F24 is not declared, or an Event uses it, the line shows all keys in one or two lines.

5. Messages to the user

Message("Rows found: " + String(&nRows, 5), Info)

Error (red), Warning (yellow), Info (normal color). Shown on the next refresh and cleared after one cycle.

6. Next step

If the screen needs to show a list of rows with selection/pagination, see DataGridView.

DataGridView: paginated grids

DataGridView shows a list of rows from a table on a Screen, with native pagination (Page Up/Down) over a DDS subfile. There can only be one per Screen.

1. Full example

@Properties {
    Type : Screen
    Name : SGRIDDEMO
}
@References {
    Tables = ["tables/TLGRIDDEMO.warp"]
}
@Variables {
    global {
        VCustCode char(6)
        VName     char(20)
        VCity     char(15)
        VTotal    number(5)
        VLast     char(6)
    }
}
@Layout {
    DataGridView("GridDemo", 2, 2, 5)
    [
        Column("Code", &VCustCode)
        Column("Name", &VName)
        Column("City", &VCity)
    ]
}
@Source {
    Event Load
        For Each In GRIDDEMO Index GRIDDMNOM
            &VCustCode = CustCode
            &VName     = Name
            &VCity     = City
            LoadRow()
        EndFor
    EndEvent

    Event Enter
        &VTotal = 0
        For Each Row
            &VTotal = &VTotal + 1
            &VLast = &VCustCode
        EndFor
        Message("Rows: " + String(&VTotal, 5) + " Last: " + &VLast, Info)
    EndEvent
}

Between two contiguous visible columns there is always at least one free position (the separator, if declared; otherwise a space). This counts toward the E00353 width calculation: see Available width and error E00353.

2. Loading the grid: Event Load + LoadRow()

LoadRow() takes the current values of the variables bound to each Column and appends a row to the grid. It is valid anywhere in the body of any Event of a Screen — directly, inside If, Case, While, For or For Each — so it can also load the grid with data that does not come from a table. A For Each that loads the grid must declare Index (E00201). There can be several loads in the same event: all of them append rows to the same grid. In Event Load the grid is reset only once, when the event starts; in any other Event or Procedure the rows are appended to the ones already there. It loads the entire result set in a single pass — Page Up/Down are native terminal scrolling over what’s already loaded; Load never runs again.

LoadRow() can also be used inside any Procedure of the Screen, regardless of where it is invoked from (with Do). A Function cannot use LoadRow(), and it cannot be used outside an Event or Procedure either (E00198).

Event Load
    Do Carga()
EndEvent

Procedure Carga()
    For &Indice = 1 To 5
        &VCod    = &Indice
        &VNombre = "Item " + String(&Indice, 3)
        LoadRow()
    EndFor
EndProc

A Procedure with LoadRow() can also be called from another event. Here Enter appends rows to the ones Load already loaded (and F5/Refresh runs Load again, which resets the grid):

Event Enter
    Do AddRows()
EndEvent

Procedure AddRows()
    &VCod    = 99
    &VNombre = "Added row"
    LoadRow()
EndProc

Or directly in the event, with no procedure and no table:

Event Load
    &VCod    = 1
    &VNombre = "First"
    LoadRow()
    &VCod    = 2
    &VNombre = "Second"
    LoadRow()
EndEvent

Related rule: a local variable with the same name as a Column variable shadows the global one (LoadRow() would copy the local value), error E00356. See Diagnostics.

3. Reading the selection: RefreshSelectRow() and CurrentInput()

When the cursor lands inside the grid’s rectangle (header, attention row, or any data row), CurrentInput() returns the grid’s name. RefreshSelectRow() re-reads the row under the cursor and writes each column (including Hidden ones) back into its bound variable — it’s the reverse of LoadRow(). This is how to recover the value of a Hidden column: those columns travel in the subfile record as hidden fields (usage H in the DDS), with no line or position on the screen:

Event Enter
    &Control = CurrentInput()
    If &Control = "GridDemo"
        RefreshSelectRow()
        Message("You selected: " + &VCustCode, Info)
    EndIf
EndEvent

4. Iterating over all loaded rows: For Each Row

For Each Row ... EndFor iterates over all rows already loaded into the subfile (not the database table), writing each Column into its bound variable before every iteration — same direction as RefreshSelectRow(). It doesn’t support Index/Where/When None because there’s no table being iterated:

Event Enter
    &VTotal = 0
    For Each Row
        &VTotal = &VTotal + 1
    EndFor
EndEvent

5. Hidden columns

Column("Internal ID", &VInternalId, Hidden)

A Hidden column loads its data (participates in LoadRow()/RefreshSelectRow()/For Each Row) but doesn’t show its cell or header title — useful for carrying an internal key without taking up screen space.

6. Editable columns (Input)

Column("Quantity", &VQuantity, Input)

Lets the user edit the value directly in the grid.

Reloading the grid: Refresh and Refresh Keep

To run Event Load again (for example, after changing a filter) use Refresh (goes back to the first row) or Refresh Keep (keeps the row where the user was). The reload happens when the current event ends. F5, if declared in @FunctionKeys, runs Event Refresh and then reloads the grid. See Refresh and Refresh Keep.

7. Rules to keep in mind

• The name ("GridDemo") is required and must be unique among Input/DataGridView controls on the same screen.
• Only one DataGridView per Screen.
• Only valid inside a Screen’s @Layout, never a Program’s.

Reports with Member() / Export()

Pattern for generating a report: accumulate rows into a physical table (a data member exclusive to the user/run) and, when done, dump it to a text file on the IFS.

This feature uses varchar in @Variables — see Data types.

1. Full example

@Properties {
    Type : Program
    Name : PTESTME
}
@References {
    Tables = ["../tables/TLT3D01.warp"]
}
@Variables {
    global {
        User        char(10)
        Destination varchar(200)
        T301TIPLOT  char(1)
        T301NROTAR  char(19)
    }
}
@Source {
    &User        = USERID()
    &Destination = "/tmp/report.txt"

    Member(LT3D01, &User)

    For Each In LT3D01 Index LT3D0101
    Where T301TIPLOT = &T301TIPLOT
    Where T301NROTAR = &T301NROTAR
        // ... accumulate rows into LT3D01, e.g. with New In LT3D01 ...
    EndFor

    Export(LT3D01, &Destination)
}

2. Member(Table, expr): one member per user/run

Member(LT3D01, &User)

Attaches a data member (parameterized by expr, typically &User so each user gets their own) to Table for the whole program:

• Creates it with ADDPFM if it doesn’t exist yet (tolerates the error if it already exists).
• Leaves it active with OVRDBF — effective for the rest of the program, including any open of that table and any later Export(...) over it.

Position rules (at most once per table, in either case):

• In a Program: only at the top level of @Source (not nested inside If/While/For/Event/etc.).
• In a Screen: only at the top level of Event Init (not nested, and not in any other Event) — Init runs exactly once, before the screen’s main loop, the same place a Program’s prologue would go:

@Properties {
    Type : Screen
    Name : SGRIDDEMO
}
@Source {
    Event Init
        Member(LT3D01, &User)
    EndEvent

    Event Load
        For Each In LT3D01 Index LT3D0101
            // ... fills the DataGridView, or reads/writes rows ...
        EndFor
    EndEvent
}

Export(...) still isn’t allowed in a Screen — there’s no use case for exporting a report from an interactive screen.

Important: Member(Table, expr) must appear before any For Each/New over Table in the same body — using it after already reading/writing the table is a runtime error, not a compile-time one.

3. Export(Table, destination): dump to IFS

Export(LT3D01, &Destination)

Copies Table’s active member (the one Member(...) set, if any) to an IFS stream file with CPYTOIMPF, comma-delimited format (RCDDLM(*CRLF) STRDLM(*NONE) FLDDLM(',')), replacing the destination if it already exists (MBROPT(*REPLACE)).

Rules: only valid in Program; unlike Member, no position restriction — use it wherever convenient, typically after the For Each/New that filled the report table.

Project: .warproj and .warpcfg

Every .warp file is compiled in the context of a project (.warproj), which in turn points to a generator config file (.warpcfg) holding the code generation rules and the IBM i deployment settings.

1. .warproj

@Project {
    Name            : Example
    Description     : "Sample project"
    Version         : 1.0
    Default Profile : Dev
    @Generator {
        Name        : "waRPGate generator"
        Language    : RPGLE
        Description : "RPGLE generator"
        @Paths {
            Config : ../example/generator/rpg/rpg.warpcfg
            Output : output/rpg
        }
    }
}

• @Paths/Config: path to the .warpcfg (relative to the .warproj).
• @Paths/Output: folder where the generated RPGLE/DDS is written.

2. .warpcfg

@GeneratorConfig {
    Date Format     : DMY
    Date Separator  : /
    Time Format     : 24H
    Time Separator  : :
    Print Mode      : File
    Commitment      : True
    Commit on Exit  : True
    DDS Name        : <ObjectName>
    @Screen {
        Rows        : 24
        Columns     : 80
        @FunctionKeys {
            F3      : "Exit"
            F5      : "Refresh"
            F24     : "More keys"
        }
    }
    @Profile "Dev" {
        @Connection {
            Host        : DEVSERVER
            User        : myuser
            Auth Method : key
            Key File    : ~/.ssh/id_rsa_ibmi
            Protocol    : ssh
            Port        : 22
            Timeout     : 30
        }
        @Deployment {
            CL Source       : QCLSRC
            Cleanup         : true
            Target Release  : *Current
            Optimization    : *FULL
            Debug           : false
            Temp Path       : /tmp
            Data Library    : DTALIB02
            Objects Library : OBJLIB01
            Source Tables   : QDDSSRC
            Source Programs : QRPGLESRC
            Compile Library : DTALIB01,DTALIB02,DTALIB03,OBJLIB01
        }
    }
    @Profile "Prod" {
        @Connection {
            Host        : PRODSERVER
            User        : myuser
            Auth Method : key
            Key File    : ~/.ssh/id_rsa_ibmi
            Protocol    : ssh
            Port        : 22
            Timeout     : 30
        }
        @Deployment {
            CL Source       : QCLSRC
            Cleanup         : true
            Target Release  : *Current
            Optimization    : *FULL
            Debug           : false
            Temp Path       : /tmp
            Data Library    : DTALIB02
            Objects Library : OBJLIB01
            Source Tables   : QDDSSRC
            Source Programs : QRPGLESRC
            Compile Library : DTALIB01,DTALIB02,DTALIB03,OBJLIB01
        }
    }
}

What each block controls

• Top level (Date Format, Print Mode, Commitment, Commit on Exit, DDS Name): code generation rules, applied to the whole project. Commitment/Commit on Exit can be overridden per object in a specific .warp file’s @Properties.
• @Screen: default screen size (24x80 if omitted) and the function keys (@FunctionKeys) available to the project’s Screens — the label shown in the attention line. A Screen attaches a key to its own event with Event 'Name' <n> ... EndEvent.
• @Profile "Name": a deployment environment (Dev, UAT, Prod, the name is free-form). Each profile groups its own @Connection, @Deployment, and, optionally, @License. A .warpcfg must declare at least one @Profile.
  • @Connection: how the compiler reaches the IBM i for --action build/reverse (doesn’t apply to validate/generate, which are purely local).
  • @Deployment: libraries and source member where the generated code gets uploaded and compiled (CRTPF/CRTLF/CRTCLPGM).

With more than one @Profile, it’s necessary to indicate which one to use: either with --profile <Name> on the CLI, or by leaving Default Profile set in @Project (as in the .warproj example above). The VSCode extension has its own picker — see VSCode commands.

See Project file for the full list of keys and their allowed values.

Licensing

The compiler’s generate, build and reverse actions require a license. The validate action does not, so source validation (and the extension’s IntelliSense) always works.

The license is managed automatically: it’s taken when using the compiler and released when it’s done, with no manual intervention.

License modes

Organization

A license service manages a pool of seats. The compiler:

• Connects securely to your organization’s license service (identifying the server with Fingerprint, in the project configuration). Host/Port/Fingerprint are handed out by whoever administers that service — see Setting up the license service if that’s you.
• Each user holds a single seat at a time.
• If the compiler closes or loses the connection, the seat is released automatically — no one is left holding a license they’re not using.
• Compatible with Kerberos/Active Directory authentication, to integrate with your existing corporate credentials.
• On macOS Kerberos authentication is not available: if your organization’s license service requires Kerberos, the macOS compiler cannot obtain a license from that service. Windows and GNU/Linux do not have this limitation.
• If the .warpcfg has a Host, the service takes precedence: there is no automatic fallback to the individual license file.
• Without a domain (no Kerberos), license-status in organization mode is only accepted from the service’s own machine, unless the administrator enables remote queries — see Setting up the license service.

Individual

A signed license file, bound to the machine, validated locally with no network. The default path is:

• Linux/macOS: ~/.config/warpgate/license.json
• Windows: %APPDATA%\warpgate\license.json

Another path can be set with File (in @License), --license-file or WARPGATE_LICENSE_FILE.

Configuration

@License block in the .warpcfg

Optional block inside each @Profile (see Project file) — each profile (Dev/UAT/Prod) can have its own license configuration, to consume different licenses or licensing services depending on the environment. Properties are case-insensitive.

@GeneratorConfig {
    @Profile "Prod" {
        @License {
            Host        : "servidor01.dominio.local"
            Port        : 7443
            Fingerprint : "3f2a9c41d87b05e6a1c4f0937be2d5688a1f4c0d29e7b3a65c8d1f0e4b7a9c23"
        }
    }
}

--profile/Default Profile picks which profile (and therefore which @License) to use on each run — see Project: .warproj and .warpcfg.

Without Host, the mode is individual.

Flags and environment variables

Precedence: flag > environment variable > .warpcfg.

With several @Profile declared, license-status also respects --profile/Default Profile to know which @License to read from — see Project: .warproj and .warpcfg.

Exit codes

Requesting a license

These support actions don’t take a seat and don’t need --source; --project is optional.

warpgate --action license-request --license-id <ID> --license-out request.json

It writes the request file (--license-out is optional; default request.json) and shows the machine identifier. Once you receive the license file, copy it to the default path (or to the one set with File). Installing a new license replaces the previous one: the previous one stops being valid by serial number.

How to get a license (free for now, time-limited)

Warpgate is currently distributed free of charge: Software House issues free individual licenses, valid for 90 days and renewable. This policy may change later, without affecting already-issued licenses.

1. On the machine where the compiler will run, generate the request:

   warpgate --action license-request --license-id <name or company> --license-out request.json


2. Send to warpgate@softwarehouse.pe:
   • The generated request.json file.
   • The machine identifier the command prints on screen (needed to issue the license).
3. Software House replies with a signed license.json file, tied to that machine, valid for 90 days.
4. Copy that file to the default path (or the one set by --license-file/File/WARPGATE_LICENSE_FILE):
   • Linux/macOS: ~/.config/warpgate/license.json
   • Windows: %APPDATA%\warpgate\license.json
5. Confirm with warpgate --action license-status (it should show the status and the expiry date).

Once the 90 days are up, generate/build/reverse stop working until you renew — repeat this same procedure to get a new license. validate keeps working regardless, even without a license. For a license with seats for several users (organization mode), also write to warpgate@softwarehouse.pe.

From VSCode

The same steps can be done from the command palette (Ctrl+Shift+P / F1), without using the console — see VSCode commands:

1. WaRPGate: Request License — asks for the name or company, saves request.json and shows the machine identifier (Copy Machine ID and Reveal File buttons). Send both to warpgate@softwarehouse.pe.
2. WaRPGate: Install License — select the received license.json and it is copied to the default path (it asks for confirmation if a license already exists, which would stop being valid).
3. WaRPGate: License Status — shows the status, the expiry and the product.

To check the current state:

warpgate --action license-status

It shows the mode, the license, the expiration and, in organization mode, the seats in use and available.

License scope

A license covers one product and one major version (for example, the 0.x series). It can be perpetual or have an expiration date.

Development

Development builds accept WARPGATE_LICENSE=off to skip the requirement. Release binaries do not.

Related diagnostics

Setting up the license service (organization mode)

This page is for whoever administers your organization’s infrastructure (systems team, or the IBM i server administrator) — you don’t need to read it to program in WARP. It covers the one-time setup of the service that hands out licenses across your whole development team. People who just use Warpgate get three final values (Host, Port, Fingerprint) from the administrator and put them in their @License — see Licensing.

1. Download

• license-service (administers the service): Linux · Windows
• license-gui (visual query tool, optional — see section 5): Linux · Windows
• Checksums: SHA256SUMS.txt

On Linux, make them executable: chmod +x license-service license-gui.

2. Request the organization license

On the server where the service will run:

license-service create-request --license-id "<Your organization's name>" --out request.json
license-service gen-hwid

The second command prints several machine details; copy the primary_os_id value (a 32-character string). Send to warpgate@softwarehouse.pe:

• The request.json file.
• The primary_os_id value.
• How many simultaneous seats your team needs.

Software House replies with a license.json file for that server, valid for 90 days and renewable — same free-of-charge model as the individual license, see Licensing.

3. Install the service

Windows, with the license-gui window (recommended)

The license-gui window is only available in Spanish. Its tabs and buttons are written here exactly as they appear on screen, with a translation in parentheses the first time.

1. Keep license-gui.exe and license-service.exe in the same folder (for example C:\license). The service is registered pointing to that folder: don’t move it afterwards.

2. Open license-gui.exe with right click → Run as administrator. On the connection screen, click Servidor local: instalar y mantener… (“Local server: install and maintain”).

3. The window has these tabs:

   • 1. Solicitar licencia (request the license): enter the license identifier and click Crear solicitud (create request). It generates request.json and a request-hwid.txt with the machine identifier (with a Copiar (copy) button). Send both files to Software House (see section 2).

   • 2. Instalar servidor (install server): choose the received license.json and fill in:

     • Nombre del servidor (server name): by default, the computer’s full name.
     • Puerto (port): 7443 by default.
     • Red de usuarios (firewall) (users’ network): LocalSubnet or a range (for example 192.168.0.0/24). The firewall rule is only created if Windows Firewall is active in some profile.
     • Consultar con la GUI desde (query with the GUI from): networks allowed to query remotely (see section 7).

     Then click Instalar servicio y arrancar (install service and start). In order, the window registers the service, installs the license, generates the certificate, adjusts the permissions of the data directory (only SYSTEM and Administrators), creates the firewall rule if applicable, starts the service and checks that it is listening. At the end it shows the fingerprint and the @License block ready to copy to the clients.

     There is also Desinstalar servicio… (uninstall service): it stops and removes the service and removes the firewall rule. An optional checkbox also deletes the data (license, certificate, seats database and log); by default they are kept.

   • 3. Certificado TLS (TLS certificate): to use the organization’s certificate (see section 6).

   • 4. Log del servicio (service log): refreshes by itself every 3 seconds; it has Copiar and Limpiar log… (clear log) (empties the file without deleting it; the service keeps writing).

The Windows service is named WarpgateLicense and starts automatically. Its data lives in C:\ProgramData\license-service\:

LDAP certificates: the LDAP client (ldaps://) trusts the certificate authorities in the system store. If the domain controller uses an internal CA, that CA must be installed in the store of the machine running the service (on Windows, the Windows certificate store). Otherwise the LDAPS connection fails and the service denies access.

Windows, from the console (alternative)

license-service install-license --license license.json
license-service gen-tls-cert --subject-alt-name <server-host-or-domain>
license-service install-windows-service --bind 0.0.0.0:7443

This registers license-service as a regular Windows service (starts automatically, restarts itself on failure) — manage it from the Services console like any other. The second command prints the SHA-256 fingerprint on screen: that value is the Fingerprint needed by anyone connecting.

Linux, as a systemd service (recommended)

1. Copy the binary and create a dedicated user for the service:

   sudo install -m 0755 license-service /usr/local/bin/license-service
   sudo useradd --system --no-create-home --shell /usr/sbin/nologin warpgate-license
   sudo install -d -o warpgate-license -g warpgate-license -m 0700 /var/lib/license-service


2. Install the license and generate the certificate, as that user:

   sudo -u warpgate-license env LICENSE_SERVICE_DIR=/var/lib/license-service \
     license-service install-license --license /path/to/license.json
   sudo -u warpgate-license env LICENSE_SERVICE_DIR=/var/lib/license-service \
     license-service gen-tls-cert --subject-alt-name <server-host-or-domain>


   Write down the SHA-256 fingerprint the second command prints: that value is the Fingerprint.
3. Download the systemd unit file, copy it and enable the service:

   sudo cp license-service.service /etc/systemd/system/
   sudo systemctl daemon-reload
   sudo systemctl enable --now license-service


This makes the service start on boot and restart itself on failure. Logs: journalctl -u license-service -f. Only open TCP port 7443 to the subnet of Warpgate users.

Linux, quick test (no systemd)

To test before installing it as a permanent service:

license-service install-license --license license.json
license-service gen-tls-cert --subject-alt-name <server-host-or-domain>
license-service run --bind 0.0.0.0:7443

Runs in the foreground; stops when you close the terminal. Useful to verify everything works before the step above.

4. Hand the values to your team

Each developer puts these three values in their project’s @License (see Licensing):

• Host: the server where the service runs.
• Port: 7443 (or whatever was set with --bind).
• Fingerprint: the one gen-tls-cert printed.

If the .warpcfg has a Host, the service takes precedence: there is no automatic fallback to the individual license file, so if the service goes down, generate/build/reverse fail. Host without Fingerprint is an error.

If your organization uses Active Directory, the service can require Kerberos authentication — contact Software House to enable it.

Mode without a domain (no auth.json)

If Kerberos is not configured, the identity of whoever takes a seat is the name the machine declares (not verified). In addition:

• Queries (license-gui, license-service query and also warpgate --action license-status in organization mode) are only accepted from the service’s own machine. From another PC, the service rejects the query: warpgate shows “Your user is not authorized to use the warpgate license. Ask the administrator for access.”, license-gui shows “no estás autorizado para esta operación” (“you are not authorized for this operation”), and the service logs consulta rechazada desde <IP> (“query rejected from” the client’s IP). To allow remote queries, see section 7.
• Taking a seat (generate, build, reverse) has no such restriction: it works from any PC that can reach the service.
• Installing or replacing licenses is always only done from the server (or by Kerberos administrators).

5. Checking the service with license-gui

license-gui is a separate window, no command line, for checking the license status without touching the seats in use (it doesn’t consume a seat): active license and expiry, seats in use and available, and each user’s session history (including whether a session closed normally or was lost).

On opening, it asks for the same three values as any client — Host, Port, Fingerprint — plus an optional SPN if the service requires Kerberos. Whoever administers the service can also install a new license from there, with no restart needed.

Its tabs are Usuarios, Licencias (installing a license is only allowed to administrators), Estadísticas and Log del servicio. From another PC it only works if remote queries were enabled (or with Kerberos).

6. TLS certificate

By default the service uses a self-signed certificate, valid from 1975 to 4096 (practically never expires). The client does not check dates, CA chain or name: it only compares the certificate’s SHA-256 fingerprint with the configured Fingerprint.

If security requires the organization’s certificate, it can be used from the 3. Certificado TLS tab of the window, choosing the type:

The window converts to the internal format and saves (the previous one is kept as tls_cert.der.previous and tls_key.der.previous), restarts the service if the option is checked, and shows the fingerprint (with a Copiar button) and the @License block. If the file contains the full chain, the server’s own certificate (the one matching the key) is used.

Errors explained by the window: key does not match the certificate, wrong PFX password, wrong type, and PEM key encrypted with a password (not supported: remove the password with openssl pkcs8 -in key.pem -out key-no-password.pem -nocrypt, or provide a PFX).

Important: changing the certificate changes the fingerprint, and it must be updated on all clients (@License and the license-gui connection screen). Renewing a corporate CA certificate changes it again.

Console equivalent (then restart the service):

license-service import-tls-cert --format pem|pfx|der --cert <file> [--key <file>] [--password-env VARIABLE]

7. Read-only remote queries

Without Kerberos, for license-gui and license-status to query from other PCs, create the auth.json file in the data directory (C:\ProgramData\license-service\auth.json; /var/lib/license-service/ with systemd):

{ "query_allowed_networks": ["192.168.0.10", "10.1.2.0/24"] }

• Accepts IPs or CIDR ranges, IPv4 and IPv6.
• Only applies without Kerberos and requires restarting the service.
• Create the file without BOM (strict JSON).
• From those networks, users, history, statistics and log are visible, but licenses cannot be installed and the Servidor local… button does not appear.
• Addresses are authorized, not people: keep the list short.

Shortcut: the Consultar con la GUI desde field on the 2. Instalar servidor tab writes this auth.json (it does not overwrite an existing one).

8. Connection limits

The service drops a new connection before TLS and notes it in the log with the IP (1 out of every 50 rejections). It does not affect anyone who already holds a seat.

• Total: seats × 2 + 20 (computed from the license).
• Without a session yet (handshake or authenticating): maximum 50.
• Per IP: 5 by default; configurable with "max_connections_per_ip": N in auth.json (0 = no limit). Connections from the service’s own machine are exempt from this cap.

Raise the per-IP value if many users share an IP (build server, remote desktop). Requires restarting the service.

9. Statistics and export

license-gui queries and administers without consuming a seat. The Estadísticas tab lets you choose the period (7, 30, 90 days or 1 year) and shows:

• Sessions and distinct users.
• Peak of simultaneous seats and when it happened.
• Percentage of usage time with all seats taken, and usage time.
• Rejections due to lack of seats (recorded only since this version; there is no earlier data).
• Charts of the peak per day and per hour of day (local time), and a per-day detail.
• A guiding reading: “consider expanding” if there were rejections; “at the limit” if the pool was full 5% or more of the usage time; “spare capacity” if the peak was half or less of what was contracted. It warns if there are fewer than 7 days with usage.

It helps decide whether to buy more seats.

The Exportar ▾ menu offers: Resumen de usuarios (CSV) (users summary), Historial de sesiones del período (CSV) (session history for the period), Log del servicio (texto) (service log, as text) and Estadísticas del período (CSV) (statistics for the period). The CSVs use ; and a UTF-8 BOM (they open correctly in Spanish-locale Excel) and neutralize values starting with =, +, - or @ (formula injection). History and log require being able to see all users.

10. Common problems

Structure of a .warp file

A .warp file is a sequence of @Name { ... } sections. Which sections apply depends on @Properties/Type:

A .warproj/.warpcfg doesn’t describe an object — they use their own top-level sections (@Project, @GeneratorConfig) — see Project file.

General syntax

• Comments: // to end of line.
• Strings: double or single quotes interchangeably ("text" and 'text' are semantically the same).
• Variables: always with & (&Username); table field names go without & inside a For Each/New.
• Every top-level section carries @; control names inside @Layout may carry @ optionally (@Label/Label are equivalent).

Reference index

• @Documentation
• @Properties
• @Structure, @Fields, @Indexes
• @References
• @Variables
• Data types
• @Parameters
• @Layout
• @Source: control statements
• @Source: Event and Screen
• Builtin functions
• Expressions and operators
• Project file

@Documentation

Informational metadata, doesn’t affect code generation.

In Program/Screen (top level)

Flat Key : value pairs:

@Documentation {
    Author Name          : Programmer Name
    Author User          : User Code
    App Id               : Application ID
    App Name             : Application Name
    Module Id            : Module ID (if applicable)
    Created At           : "12/06/2025"
}

In Table (nested inside @Structure)

Here @Documentation has no keys of its own, only sub-sections:

• @Author: Name, User, Company.
• @Application: Id, Name, Description.
• @Module: Id, Name, Description.
• @Repository: Official, Type (e.g. git), Branch, Version.
• @History: container for @Creation and any number of @Change entries.
  • @Creation: Date, Author, User, Company, Reason.
  • @Change (repeat the block for each entry): Date, Type (by convention breaking/feature/fix/security/performance/refactor/config/docs, not enforced by the compiler), Impact (by convention high/medium/low), Version, Reason, Author, User, Company.

@Structure {
    Name : "GRIDDEMO"
    @Documentation {
        @Author {
            Name : Programmer
        }
        @History {
            @Creation {
                Date   : "2025-06-12"
                Author : Programmer
                Reason : "Initial creation"
            }
            @Change {
                Date    : "2026-01-10"
                Type    : feature
                Impact  : medium
                Reason  : "Adds City column"
            }
        }
    }
    @Fields { ... }
}

@Properties

Program

@Properties {
    Type            : Program
    Name            : PTEST01
    Description     : "Test program"
    Commitment      : True
    Commit on Exit  : True
    Path            : "./programs/"
}

Screen

Same keys as Program (Type with value Screen), plus 7 of its own:

@Properties {
    Type    : Screen
    Name    : SCONFIRM
    Popup   : True
    Window Row     : 5
    Window Column  : 10
    Window Rows    : 10
    Window Columns : 40
}

Example with the key line moved and colored:

@Properties {
    Type               : Screen
    Name               : SCUSTOMERS
    Function Keys Row  : 22
    Function Keys Color: Blue
}

A Screen with Popup: True is generated, compiled and deployed exactly like any other Screen — only the DSPF changes (WINDOW instead of a full screen). To show it from another Screen, reference it in @References/Screens and call it with Call(Name, ...) — see @Source: control statements.

Table

Only Type:

@Properties {
    Type : "Table"
}

The rest of a table’s description goes in @Structure — see @Structure, @Fields, @Indexes.

@Structure, @Fields, @Indexes

Only apply to table files (@Properties/Type : "Table").

@Structure

@Structure {
    Name : ORDERS
    Record Format : ORDREC
    Description : "Orders"
    ...
}

Also contains, nested: @Fields, @Indexes and optionally @Documentation (see @Documentation).

@Fields

One Name type(...) line per column:

@Fields {
    CustCode char(6)   Description("Customer code")
    Name     char(20)  Description("Name")
    Balance  number(9,2) Default(0)
    RegDate  date
}

Allowed types: only char, number, date (not field/list/matrix — those are exclusive to @Variables, see Data types).

Modifiers:

@Indexes

One Kind(Name, [Fields...], "optional description") entry per access path:

@Indexes {
    PrimaryKey ( GRIDDEMOPK, [CustCode] )
    Unique     ( GRIDDEMOEMAIL, [Email], "Unique email" )
    Index      ( GRIDDMNOM, [Name] )
}

Full example

@Properties {
    Type : "Table"
}
@Structure {
    Name        : "GRIDDEMO"
    Description : "Sample customers"
    @Fields {
        CustCode char(6)   Description("Customer code")
        Name     char(20)  Description("Name")
        City     char(15)  Description("City")
    }
    @Indexes {
        PrimaryKey ( GRIDDEMOPK, [CustCode] )
        Index ( GRIDDMNOM, [Name] )
    }
}

@References

Lists other .warp files this Program/Screen depends on. Unlike other sections, it uses Key = [ "..." ] (a bracketed list), not Key : value.

@References {
    Programs = [
        "../programs/POTHER.warp"
    ],
    Screens = [
    ],
    Tables = [
        "../tables/TLADD50.warp",
        "../tables/TLGRIDDEMO.warp"
    ]
}

Paths are relative to the file that declares them. Doesn’t apply to table files (a table doesn’t reference other objects).

@Variables

Declares variables inside a named scope: global (visible throughout the file) or the name of a Procedure/Function declared in @Source (visible only inside that procedure/function, in addition to global ones).

@Variables {
    global {
        Username    char(10)
        MyDate      date
        Balance     number(9,2)
    }
    MyProcedure {
        counter    number(3)
    }
    Greet {
        name      char(10)
    }
}

One Name type(...) line per variable — same format as @Fields, but with more available types (see Data types): char, varchar, number, date, field(Field), list(type), matrix(rows, cols, type), struct(TemplateName).

local scope

local is a reserved scope, alongside global and the names of Procedure/Function. Its variables are only visible in the main body of @Source (outside any Procedure/Function) and in @Layout. Using them inside a Procedure/Function produces E00146.

@Variables {
    global {
        Username  char(10)
    }
    local {
        counter   number(3)
        message   char(40)
    }
}

• It only makes sense in Program type programs; it isn’t supported in Screen.
• It can’t repeat a name already declared in global (E00298).
• It doesn’t support struct templates (E00234, like any scope other than global).
• In the generated RPG it is declared at module level, just like global; the visibility restriction is enforced by the compiler only.
• An @Parameters parameter can be declared in global or in local. In local only the main body sees it, not the Procedure/Function blocks.

Struct: inline template definition

Inside the global scope (only there) you can also define a struct template with struct Name [ ... ], before or after instantiating it with struct(Name) — see Data types: Struct for the full syntax and its limits (including nested structs and list(struct(...)) as a member).

Modifier

Only Description("text") is available in @Variables (unlike @Fields, it doesn’t support Default/AllowNull):

@Variables {
    global {
        RequestNo  field(ADHOJA50)  Description("Request number")
    }
}

Constants

Inside any scope (global, local or that of a Procedure/Function), in Program and in Screen, you can declare a constant with const Name type = value:

@Variables {
    global {
        const MaxItems  number(3,0) = 100
        const Price     number(9,2) = -5.5
        const Title     char(30) = "Pass report"
        const Greeting  varchar(30) = "Hello" Description("Initial greeting")
    }
}

• Only char, varchar and number are supported; any other type produces E00310.
• The value must be a literal of the same type: quoted text, or a number (integer or decimal) with an optional - sign. It must fit the type (text no longer than the length; a number with no more decimals than the scale and no more integer digits than the precision allows) or E00311 is reported.
• It can be read in any expression but never modified: assigning to it, using it as a For counter, passing it as an out/inout argument of a Call, or using it as the target of an Input produces E00312. Passing it to a Procedure/Function that modifies that parameter produces E00179.
• An @Parameters parameter cannot be a constant (E00313).
• In a printable Block of a Program it can be displayed, for example with @Label(1,1,&Title). In a Screen it cannot be displayed in a screen field (Label/Input/Column): E00314; copy it to a variable.

In the generated RPG it is declared as a named constant (dcl-c NAME value;):

• A char(n) text is padded with blanks up to n, so it behaves like a char(n) variable; a varchar is not padded.
• A number is written with exactly the decimals of its scale (const Price number(9,2) = -5.5 generates dcl-c Price -5.50;).
• An RPG numeric constant has no precision of its own (the context where it is used sets it), but WARP treats it as the declared type for type checks.

Length/precision limits (standalone variable, different from a table field)

These larger limits in @Variables reflect that a variable declared there isn’t tied to a DDS physical file the way an @Fields field is.

Data types

Constants (const Name type = value) only support char, varchar and number; see @Variables: Constants.

Examples

@Variables {
    global {
        Username     char(10)
        Destination  varchar(200)
        Balance      number(9,2)
        RegDate      date
        RegTime      time
        RegTimestamp timestamp
        Status       field(ADSTS50)
        List1        list(number(5))
        Board        matrix(8, 8, char(1))
    }
}

field: inheriting a field’s type

field(...) takes the type of the indicated field, looking it up in the tables declared in @References/Tables. It has two forms:

• field(Field): looks the field up in all referenced tables. If it exists in more than one, E00149 (ambiguous) is reported: “El campo ‘{field}’ de la variable field(…) es ambiguo: existe en más de una tabla de @References/Tables; indique la tabla con field(Tabla.Campo).”
• field(Table.Field): looks the field up only in that table, to disambiguate. Table and field names are case-insensitive. If the table isn’t referenced or the field doesn’t exist in it, E00148 (field not found) is reported.

The resulting type is the field’s type in both forms. Both work in any @Variables scope and also as a struct member.

// Tables Customers and Suppliers (in @References/Tables) both have a Code field
@Variables {
    global {
        struct Contact [
            Code  field(Customers.Code)
        ]
        CustomerCode  field(Customers.Code)
        SupplierCode  field(Suppliers.Code)
        Name          field(Customers.Name)   // also valid when the field isn't ambiguous
    }
}

A bare field(Code) would report E00149 in this example.

char/varchar interoperability

char and varchar interoperate in assignments — the rule is purely about length (the source must fit into the destination), regardless of which one is fixed or variable:

&VarcharDestination = &CharSource  // valid if length(CharSource) <= length(VarcharDestination)
&CharDestination     = &VarcharSource

List/Matrix: indexing

&List1[1] = 100
&Board[3, 5] = "X"

The index is 1-based. List/Matrix are only valid in @Variables, never in @Fields.

List: methods

list carries no size in its declaration (list(type), no capacity parameter): the maximum internal capacity is fixed at 9999 elements, defined by the compiler and not configurable from the language. Instead of a fixed size up front, content is managed through methods, using member syntax (&Variable.Method(...)):

&List1.Add(10)
&List1.Add(20)
&List1.Add(30)

For &i = 1 To &List1.Count()
    // ... &List1[&i] ...
EndFor

&List1.Remove(2)
&List1.Clear()
&List1.Init()

There’s no For Each over an in-memory list — traversal is done with a classic For counter (For &i = 1 To &List.Count()) plus indexing (&Variable[&i]); For Each In remains exclusive to database tables (see @Source: control statements).

Real clearing. Clear(), Remove(index) and JsonSplit (when replacing the previous content) truly clear the positions that stop being used, rather than just adjusting the counter. This keeps the following invariant: every element after the last one is empty (blanks or zeros). An RPG program that receives the array (see @Parameters) can read it up to the first empty line. With 9999 elements there is no empty position after the last one.

Init() versus Clear(). In RPG, Init() is a single clear of the whole array (plus counter = 0), with no loop. Clear() only clears up to the counter: it is faster when used with few rows, but it leaves untouched any elements written by index (&List[10] = x) without going through Add(), because those writes do not move the counter. Init() clears the whole capacity (with char(250) that is about 2.5 MB), so use it at the start or when needed, not inside a heavily repeated loop.

The typical use of Init() is a list used as a fixed-size array (&Frame[1], &Frame[10]) that is then passed to another program with Call:

&Frame.Init()
&Frame[1] = "Header"
&Frame[10] = "Footer"
// Clear() would not clear &Frame[10]: it was written by index and Count() is still 0
&Frame.Init()

See the full example in example/programs/PINIT01.warp.

Note: Clear(), Remove() and JsonSplit clear what comes after the last element.

If Add(value) is called while the list is already at its maximum capacity (9999 elements), the program issues a visible dsply with the message Lista {name} alcanzó su capacidad máxima (9999) and does not add the element — it doesn’t abort the whole program.

list(struct(Template)) is valid (a list of instances of the same struct). Nesting list/matrix inside each other is not, in any combination: list(list(...)), list(matrix(...)), matrix(list(...)), and matrix(matrix(...)) produce the compile error E00283 (“‘&{variable}’ es un {list/matrix} cuyo elemento no puede ser {list/matrix} (sin equivalente RPG generable): use un tipo escalar, struct(…) o field(…).”), caught in semantic analysis — it isn’t possible to declare an array whose element is itself another array.

Split(): split a text into a list

&List.Split(text[, separators[, AllSep]]) is a statement (like Add/Clear; used as an expression it is E00280) and is only valid on list(char(n)) or list(varchar(n)) (otherwise E00363).

• It replaces the list contents: it clears the previous ones and leaves the pieces of text, up to 9999. When full it shows “Lista X llena (max 9999)” with dsply and discards the rest. A piece longer than the element is truncated.
• Without separators, it splits on blanks.
• Each character of separators is a separator: "-;" splits on hyphen and on semicolon.
• Without AllSep, consecutive, leading and trailing separators are ignored: "one,two,,three" with "," gives 3 pieces.
• With AllSep (third argument, the word AllSep, which requires separators), each separator delimits two pieces and empty ones appear: the same text gives 4 pieces: one, two, `` and three.
• An empty text gives 0 pieces.
• Trailing blanks of a char source are ignored. A char variable used as separators is trimmed: its trailing blanks are not a separator (use a literal for a blank separator).
• text and separators must be char/varchar (E00359); 1 to 3 arguments are allowed (E00358); the third must be the word AllSep (E00361).

&Parts.Split(&Text, ",")
For &i = 1 To &Parts.Count()
    // ... &Parts[&i] ...
EndFor

&Parts.Split("one,two,,three", ",", AllSep)   // 4 pieces, one of them empty

Release requirement. Split generates for-each ... in %split(...). IBM i 7.5 has it built in. On 7.3 and 7.4 two April 2021 PTFs are needed: the compiler one (5770WDS) and the runtime one (5770SS1), the latter on every system where the program runs.

Release	Compiler PTF	Runtime PTF
7.3	SI76100	SI76098
7.4	SI76101 (for TGTRLS V7R3M0: SI76109)	SI76099

Without the runtime PTF the program compiles but fails at run time with MCH4437 (export not found). It is the same requirement as Upper and Lower.

AllSep (*ALLSEP) additionally requires 7.4 TR8 / 7.5 TR2 or their PTFs: 7.4, compiler SI83497 and runtime SI83471; 7.5, compiler SI83480 (for TGTRLS V7R4M0: SI83496) and runtime SI83468. These numbers come from a search summary: verify them with IBM.

Json(): converting a struct or a list to JSON

&Variable.Json() returns the variable’s content as JSON text (varchar). It can be applied to a struct(...) (produces an object) or to a list(struct(...)) (produces an array), including nested ones by path (&env.Json(), &env.Cab.Detalle.Json()). It is used only as an expression, never as a standalone statement (E00294), and takes no arguments (E00282):

&jsonObject = &aRecord.Json()
&jsonArray  = &recordList.Json()

For the template Record [ code number(3,0), name char(20), amount number(7,2), date date ], the results look like this:

{"code":1,"name":"Ana","amount":1250.75,"date":"2026-10-16"}
[{"code":1,"name":"Ana",...},{"code":2,"name":"Luis",...}]

• Keys: the member name as declared in the template, in declaration order.
• List: the array contains only the elements in use (Count()).
• char/varchar: quoted JSON string, with " and \ escaped and trailing spaces trimmed. Control characters get no special treatment.
• number: JSON number, unquoted.
• date: "yyyy-mm-dd" string.
• Nested: a struct(...) member produces an object and a list(struct(...)) member an array, e.g. {"Cab":{"epm":"a","Detalle":[{"Pgm":"P1","Libreria":"L1"}]},"Total":2}.
• Scalar struct members can only be char/varchar/number/date/field; the generator can also emit time ("hh:mm:ss") and timestamp ("yyyy-mm-ddThh:mm:ss.ffffff") should the member types be extended.

Target variable size. For a struct, the expression has the worst-case size: for each text, 2 × length + 2; for each number, precision + 2; for each date, 12; plus key names, quotes, braces and commas. With nested structs the worst case grows with each nested list (computed over its 100 elements). The variable receiving the result must be able to hold it; otherwise the usual incompatible-assignment error (E00147) is reported. Declare the target generously (e.g. varchar(300) for a small template). For a list, no target size is enforced, but if the generated array exceeds the maximum of an RPG varchar (16,773,100 characters) the program fails at runtime instead of truncating.

Errors: E00294 (used as a statement), E00295 (the variable is neither struct nor list), E00296 (another method on a struct; Json is the only valid one), E00297 (list of scalar types: not supported for now). See Diagnostics.

No libraries or PTFs are required on IBM i: when .Json() is used, the compiler generates the needed helper procedures in the RPG (Json_<Template> and JsonList_<Template>). A complete example is in example/JSON01.warp.

To split the resulting text into lines (e.g. to print it) see JsonSplit.

Fixed-width records

A fixed-width record is a line of text where each member of a struct takes a fixed number of positions, in declaration order, with no separators. The total width is the sum of the members’ widths.

Format per member:

When reading (FromFixedWidth, FixedWidthParse): a line shorter than the record is read as if padded with blanks; an invalid number gives 0; an invalid date gives the minimum date (0001-01-01).

FixedWidth() and FromFixedWidth() work on ONE struct; for a list use FixedWidthSplit / FixedWidthParse. Calling FixedWidth() on a list gives E00305 with a hint to use FixedWidthSplit(&list, &lines).

FixedWidthSplit and FixedWidthParse also accept a path to a list that is a member of a struct, for example FixedWidthSplit(&pase.Items, &lineas) and FixedWidthParse(&lineas, &pase.Items). A member list holds up to 100 records: FixedWidthParse stops when it fills up and emits the warning FixedWidthParse: lista llena (max 100).

Only structs whose members are char, varchar, number, date (or a field resolving to one of them) are supported. A nested struct or list, or a record longer than 32766 positions, gives E00305. The elements of the line list must be able to hold the whole record (E00309).

Example with struct Cliente [codigo char(5) nombre varchar(12) saldo number(9,2) alta date]: the record is 34 positions long (codigo 1-5, nombre 6-17, saldo 18-26, alta 27-34).

@Variables {
    global {
        struct Cliente [
            codigo  char(5)
            nombre  varchar(12)
            saldo   number(9,2)
            alta    date
        ]
        c         struct(Cliente)
        otro      struct(Cliente)
        clientes  list(struct(Cliente))
        copia     list(struct(Cliente))
        lineas    list(char(40))
        trama     char(40)
    }
}
@Source {
    &c.codigo = "A001"
    &c.nombre = "Ana Perez"
    &c.saldo = -1250.5
    &c.alta = Today()
    &trama = &c.FixedWidth()
    &otro.FromFixedWidth(&trama)
    &clientes.Add(&c)
    &clientes.Add(&otro)
    FixedWidthSplit(&clientes, &lineas)
    FixedWidthParse(&lineas, &copia)
}

A complete example is in example/FIXEDWIDTH01.warp. Errors: E00305 to E00309 (see Diagnostics).

Note: number members are read with an implied decimal point and a - sign in the first position; date members as YYYYMMDD. A line shorter than the record is read as if padded with blanks.

Struct: templates and member access

A named template with members, defined inline inside @Variables’s global scope:

@Variables {
    global {
        struct Person [
            Id      number(10, 0)
            Name    varchar(50)
            Email   varchar(100)
            Age     number(3, 0)
        ]
        globalPerson    struct(Person)
        Name            varchar(50)
    }
    PrintPerson {
        person   struct(Person)
    }
}

&globalPerson.Name = "Your Name"
&Name = &globalPerson.Name
Do PrintPerson(&globalPerson)

• Template members support char/varchar/number/date/field(FieldName), struct(OtherTemplate) and list(struct(OtherTemplate)) (see Nested structs). time and timestamp aren’t supported as members, nor are matrix or list of scalar types (E00237: “sólo se permiten char/varchar/number/date/field, struct(Template) y list(struct(Template)) (no se admite matrix ni list de tipos escalares)”).

• A member is read/assigned with &Variable.Member (both read and write).

• It can be passed as a parameter to, and returned from, an in-file Procedure/Function — see Procedure / Function.

• An array of struct is declared with list(struct(TemplateName)) — see List: methods.

• Indexing &List[i] on a list(struct(Template)) is valid, but only in two exact forms: as a read, the whole value of an assignment to another &Variable that is struct(...) of the same template (&otherVariable = &List[i]); as a write, &List[i] = &otherVariable (another &Variable struct(...) of the same template, never an expression or a literal). If the side of the assignment that should be the struct variable isn’t syntactically a &Variable, E00241 is reported; if the template doesn’t match exactly the list’s, E00242 is reported. Index checks (count, number type, 1..9999 range) apply the same as for any other list:

  &otherRecord = &List[1]
  &List[1] = &otherRecord
  For &i = 1 To &List.Count()
      &current = &List[&i]
  EndFor


• Not supported yet: struct as a parameter of an external program (@Parameters/Call) — only as a parameter of an internal Procedure/Function.

Nested structs and lists inside a struct

A template member can itself be struct(OtherTemplate) (nested struct) or list(struct(OtherTemplate)) (list of structs). The referenced template may be declared further down:

struct Detalle [
    Pgm       char(10)
    Libreria  char(10)
]
struct Cabecera [
    epm       char(10)
    Estado    char(10)
    Detalle   list(struct(Detalle))
]
struct Envio [
    Cab       struct(Cabecera)
    Total     number(9, 0)
]
&env   struct(Envio)
&fila  struct(Detalle)

Access is by path, with as many levels as needed:

&env.Cab.epm = "x"
&x = &env.Cab.epm
&fila.Pgm = "PGM1"
&env.Cab.Detalle.Add(&fila)
&n = &env.Cab.Detalle.Count()
&fila = &env.Cab.Detalle[1]
&env.Cab.Detalle[2] = &fila
&env.Cab.Detalle.Remove(1)
&env.Cab.Detalle.Clear()
&texto = &env.Json()
&textoDet = &env.Cab.Detalle.Json()

• Capacity: a list that is a member of a struct reserves 100 elements (not the 9999 of a standalone list). Add on a full list shows a message and does not add the element, just like the standalone list. A literal index greater than 100 is reported as E00188.
• Maximum size: if the variable would take more than the maximum of an RPG variable (16,773,104 bytes), E00300 is reported (e.g. a list(struct) of 9999 elements whose struct carries a large nested list).
• Cycles: a template that contains itself, directly or indirectly, is reported as E00299.
• Nonexistent templates: struct(X) or list(struct(X)) inside a member with an undeclared X is reported as E00238.
• Not allowed as a member: matrix and list of scalar types (E00237); neither time nor timestamp (E00237).
• Procedures: a struct with nested members can be passed to a Procedure; if the routine modifies a nested list, the parameter is passed by reference (not const).
• Generated RPG: templates are emitted in dependency order; the member list is a dim(100) array with a hidden counter as a subfield of the same template (copied along with the struct), and variables that contain lists are initialized with inz(*likeds).
• Json(): see Json(); nested members produce nested objects and arrays.

A complete example is in example/NSTJSON01.warp.

@Parameters

Declares the parameters of a Program or a Screen (full screen or Popup): one mode:&Variable entry per line. The type comes from the matching declaration in @Variables/global or @Variables/local, it isn’t repeated here.

@Variables {
    global {
        MyDate  date
        MyTime  char(8)
    }
}
@Parameters {
    inout:&MyDate,
    inout:&MyTime
}

Doesn’t apply to tables.

A Screen declares @Parameters just like a Program, with the same modes (in, inout, out). Parameters are available from Event Init, before the screen is displayed, and out/inout values return to the caller when the Screen closes.

Example: a Popup that receives a title, modifies a quantity and returns the chosen option (based on example/screens/SPOPPRM.warp).

@Properties {
    Type    : Screen
    Popup   : True
    Name    : SPOPPRM
    Path    : Screens
}
@Variables {
    Global {
        Title     char(30)
        Quantity  number(5)
        Selection char(1)
    }
}
@Parameters {
    in:&Title,
    inout:&Quantity,
    out:&Selection
}

Another Screen (or a Program) invokes it with Call, passing the variables in the same order; the analyzer validates count, type and mode:

@References {
    Screens = [ "./SPOPPRM.warp" ]
}
@Source {
    Event 'OpenPopup' 4
        Call(SPOPPRM, &t, &n, &s)
        If &s = "S"
            &Result = "Accepted"
        EndIf
    EndEvent
}

List parameters

A @Parameters entry can be a list(char(n)) or a list(varchar(n)) (an array of text lines). It arrives as a dim(9999) array with no wrapper: in RPG, char(n) dim(9999), with const if the mode is in. Since the count is not passed, the program counts the lines up to the first empty line (or up to 9999) to set Count(). With out, the parameter starts as an empty list.

@Variables {
    global {
        Lines  list(char(80))
    }
}
@Parameters {
    in:&Lines
}

Any other list (for example list(number) or list(struct(...))), or a matrix, gives E00304: only list of char or varchar is supported.

To send a list to another program: Call("PGM", &lines) or Call(Program, &lines) passes the dim(9999) array by reference (with the real signature if the program is in @References/Programs). The count is not sent: the receiver reads up to the first empty line, which is why the list removal operations truly clear the elements (see Data types: List).

Note: in a Screen, a parameter used in @Layout must have more than 10 characters: with 10 or fewer it gives error E00369, because the DDS field takes that same name and does not compile on IBM i.

@Layout

Describes the layout of a screen or report: Label, Input, Column, DataGridView, Block, or any other Name(...) as a generic control. Control names may carry @ optionally (@Label/Label are equivalent).

Controls with their own grammar

Example (Screen)

@Layout {
    @Label(1,2,&Program)
    @Label(1,70,&MyDate)
    @Input("txtRequestNo",3,1,"Request No.: ",&RequestNo,true)
    @DataGridView("GridRequests",6,1,8," ") [
        @Column("Country",&nCountry)
        @Column("User",&cUser)
    ]
}

Struct members in the layout

Label, Input (target variable and enabled) and Column accept struct member paths, including nested ones: &cust.Code, &ord.Cust.Name. They also work with Print in a Program.

@Layout {
    @Label(1,2,&cust.Code)
    @Input("TxtName",3,2,"Name:",&cust.Name,&cust.Active)
    @Input("TxtCust",4,2,"Customer:",&ord.Cust.Name)
    @DataGridView("GridRows",6,1,8," ") [
        @Column("Name",&row.Name)
    ]
}

Each path becomes a DDS field: every . is replaced by _, the result is uppercased and truncated to 10 characters (cust.Code -> CUST_CODE, ord.Cust.Name -> ORD_CUST_N). If two variables or paths end up with the same DDS name (for example cust.Code and cust_Code), E00210 is reported. A member that does not exist reports E00178.

Upper and lower case in text Input

An Input whose variable is char or varchar accepts lowercase: the DDS carries CHECK(LC), so the 5250 terminal no longer converts what is typed to uppercase. The program receives exactly what the user typed (for example Lima). Numeric, date and time Input fields are unchanged.

When comparing the typed value against literals, normalize it with Upper:

If Upper(&City) = "LIMA"
    ...
EndIf

Full conditions

The optional last parameter enabled of Input (and the optional condition of Style) accepts, besides the true/false literal, these forms:

• &Variable: non-zero = enabled.
• Function(): a function with no arguments returning number; non-zero = enabled.
• A full condition: comparisons (= <> < <= > >=), And, Or, Not, numbers, strings, variables and Function() calls with no arguments. It is true when it holds.

@Input("TxtOp",7,2,"Operation:",&Op, Not &Locked = 1 And &Status <> "9")

The condition is re-evaluated before every redraw, using the same indicator mechanism that dynamic enabling already used. Precedence: see Not.

Table fields on their own, indexes and methods are not allowed in the condition: they report E00322.

Style: screen color and attributes

Style(...) goes at the end of the parameters of a Label, an Input or a DataGridView Column, and is only valid in a Screen (in any other object type it gives E00325). It assigns 5250 screen color and attributes (DDS COLOR and DSPATR).

Label(x, y, text, Style(...)[, Style(...)])
Input("Name", x, y, text, &Var[, enabled][, Style(...)]...)
Column(text, &Var[, Input|Hidden][, Style(...)]...)

Syntax: Style(Name, Name, ...[, condition]).

Colors (at most one per Style; otherwise E00321):

Attributes (combinable with each other and with a color):

An unknown name gives E00320. A Style with no color or attribute gives E00324.

Equivalences for those migrating: 'RI' = Reverse, '+' = High, MGN = Pink.

Conditional Style

The last argument of a Style can be a condition, with the same forms as enabled (variable, Function() or full condition). The Style applies while the condition is true.

Rules per element:

• At most one Style without a condition (the “normal” one): it applies only if no conditional Style is active.
• Up to three conditional Style entries. Exceeding the limits gives E00323.
• If two conditional Style entries hold at once, the first one declared wins.
• Each conditional Style consumes one indicator from the same range as dynamic enabling (30-89).
• A monochrome screen ignores COLOR.

@Layout {
    Label(1,2,&Title,Style(Reverse,High))
    Label(3,2,"F3=Exit",Style(Red))
    Label(5,2,&Desc,Style(Blue,&Status = "1" Or &Status = "2"),Style(Pink,&Status = "3"),Style(Green))
    Input("TxtOp",7,2,"Operation:",&Op,Not &Locked = 1 And &Status <> "9",Style(Yellow,Underline))
    Input("TxtAmt",8,2,"Amount:",&Amount,&Locked = 0,Style(Turquoise,&Locked = 1))
}

For &Desc, the text is blue if &Status is "1" or "2", pink if it is "3" and green otherwise. Full example: example/screens/SSTYLE01.warp.

Style in DataGridView Column

Column accepts Style(...) after the optional mode (Input/Hidden). The rules are the same (colors, attributes, at most one Style without a condition and three with a condition per column, the first one declared wins, errors E00320-E00324):

DataGridView("GridOrd",2,2,10)
[
    Column("Order",&VOrdNo)
    Column("Quantity",&VQty,Style(Red,High,&VQty > 100),Style(Green))
]

Key difference: the condition of a column Style is evaluated per row, at the time of LoadRow() (right before the row is stored in the subfile), with the values the variables hold at that instant. Therefore LoadRow() must come after the row variables are assigned. The indicators are stored together with each row, so the color of a row does not change if the variables change later. These indicators share the 30-89 range with the rest of Style and with enabled. Full example: example/screens/SJNGRD01.warp.

Limitations

• Per-row dynamic enabling in the DataGridView (a conditional Column(..., Input)) does not exist yet (planned).

Example (Program, with a printable Block)

@Layout {
    @Block("Header") [
        Label(1,1,"Sales Report")
        Label(2,1,&Today)
    ]
}
@Source {
    Print("Header")
}

@Layout is optional in Program (a purely batch program, with no printed output, doesn’t need it) but required in Screen. Doesn’t apply to tables.

@Source: control statements

The imperative body of a Program/Screen: assignments, control flow, table access, Procedure/Function declarations, calls and reports.

For Each In: iterating over a table

For Each In Table [Index IndexName]
[Where Field = expr]...
    // body, runs for each row found
[When None
    // runs if no row was found
]
EndFor

• Index: optional, picks the access path (defaults to the sequential-access one).
• Where: zero or more, filters by equality.
• When None: optional, runs if the loop found no rows.

Join In: joining another table

For Each In Orders
Join In Customers On CustCode = CustCode
Join In Zones
Where Status = "A"
    &VName = CustName
    &VZone = ZoneName
EndFor

Syntax: one or more Join In Table2 [On keyField = expr [And keyField2 = expr2 ...]] lines right after For Each In Table [Index Idx] and before the Where clauses.

• The joined table is read by its PrimaryKey (in RPG, a chain on the primary-key logical file) once for each record read from the table being iterated. Join declares no Index.
• Without On (implicit): each PrimaryKey field of the joined table must exist with the same name in the iterated table or in another table joined earlier (otherwise E00316).
• With On: the fields on the joined-table side must be exactly its PrimaryKey fields, none repeated or missing (order does not matter; otherwise E00317). The other side can be a field of the iterated table or of a previously joined table, or a variable or expression. If both sides are fields of the joined table, the left one is the joined one. Types must be compatible (E00318).
• No match: if the joined table has no record with that key, the loop does not skip the row; it continues and the joined table’s fields are blank or zero.
• Visibility: all fields of the joined tables can be used in the Where clauses and in the body. If a name exists in both the iterated and the joined table (typically the key fields), the iterated table’s field is always used. A Where on a field that only exists in the joined table is evaluated inside the loop, after the chain (it does not position the file).
• Read-only: assigning a joined-table field gives E00319.
• Several Join In lines can be chained. The joined table must have a PrimaryKey in @Indexes (otherwise E00315).
• Join and On are not reserved words: they are only recognized in the For Each header (Join followed by In), so they remain usable as field names.
• DataGridView: the For Each that loads the grid in Event Load also supports Join In. Fields of the joined table are assigned to the Column variables before LoadRow(), just like those of the traversed table. A Where on a field that exists only in the joined table filters rows after the chain.

Delete(): deleting the current row

For Each In Table
    If &Expired
        Delete()
    EndIf
EndFor

No arguments — deletes the row the iteration currently has loaded. Only valid inside a For Each In (not inside a For Each Row, which iterates a DataGridView’s subfile, not a table); valid in both Program and Screen. A deleted row isn’t also updated, even if the body assigned one of its fields earlier in the same iteration.

For Each Row: iterating over a DataGridView

For Each Row
    // body — runs once per row already loaded into the subfile
EndFor

No Index/Where/When None (there’s no table being iterated). Only valid inside any Event of a Screen with a DataGridView. Before each iteration it writes each Column (including Hidden ones) into its bound variable — see DataGridView.

Classic For: counter

For &Variable = start To end [Step increment]
    // body
EndFor

Counts from start to end, incrementing &Variable by increment each time around. Step is optional (default 1); with a negative Step, start must be greater than end to count downward.

Iterating over a List

There’s no For Each over an in-memory list (For Each In is exclusive to database tables, see below). It’s traversed with a classic For, using Count() as the limit and indexing (&Variable[&i]):

For &i = 1 To &List.Count()
    // ... &List[&i] ...
EndFor

See Data types: List for the full syntax of Add/Clear/Init/Remove/Count.

New: inserting a row

New In Table
    Field = expr
    ...
[When Duplicate
    // statement block: runs if the row already exists
]
EndNew

New builds a row from the assigned values and inserts it. If the row already exists, the When Duplicate block runs.

How it works

1. A read (chain) is done by the table’s PrimaryKey, with the values the New has just built.
2. If the row does not exist, the new row is written (write) and the When Duplicate block does not run.
3. If the row exists, the block runs on that row. At the end it is saved with update, only if the block assigned some field of that table.

Inside the block, a bare field (for example Status) is the one from the already stored row, not the one the New built. Values from the New that the block does not assign are discarded.

New without When Duplicate

If the table has a PrimaryKey, New also reads by it first: if the row already exists nothing is inserted, and that is not an error (the program carries on). If it does not exist, it is written. Without a PrimaryKey in @Indexes the row is written directly, and a duplicate key causes a runtime error.

What the block accepts

When Duplicate is a full statement block, not just Field = expr assignments: If/Else, While, Do Case, Do Procedure(), Call, assignments to &variables, For Each/New over other tables, etc. A When Duplicate with only assignments keeps working as before.

Names are resolved in this order:

1. The fields of the New table (the re-read row; readable and assignable).
2. The fields of the For Each loops enclosing the New (read-only).

Rules

• The table must have a PrimaryKey in @Indexes; otherwise you get E00339. It no longer depends on some For Each using an Index over that table.
• A primary key field cannot be reassigned inside the block (E00340, error). It used to be accepted: this is a minor breaking change.
• Exit directly inside the block gives E00326; inside a While/For of the block itself it is valid.
• Delete() is not valid inside the block (the usual error for Delete() outside a For Each applies).

Limit

The write fails on any uniqueness violation. If the collision was against another unique index (not the PrimaryKey), the chain by the primary key does not find the row and the write is attempted, which gives a runtime error.

Example

Program example/programs/PDUP01.warp with table example/tables/TFOLIO01.warp (primary key Empresa, Guia, Correl). If the folio exists, it toggles its Estado and adds one to Veces:

Procedure Mantener_Folio()
    &Accion = "I"
    New In FOLIO01
        Empresa = &Empresa
        Guia    = &Guia
        Correl  = &Correl
        Estado  = 1
        Descrip = "Folio nuevo"
    When Duplicate
        If Estado = 0
            Estado = 1
            &Accion = "D"
        Else
            Estado = 0
            &Accion = "H"
        EndIf
        Veces = Veces + 1
    EndNew
EndProc

The generated RPG re-reads through the PrimaryKey logical file (with its own data structure) and writes through the PF:

chain (rFOLIO01.EMPRESA : rFOLIO01.GUIA : rFOLIO01.CORREL) FOLIO0101.row rFOLIO0101;
if %found(FOLIO0101);
    // ... block ...
    update FOLIO0101.row rFOLIO0101;
else;
    write FOLIO01.row rFOLIO01;
endif;

If / While

If condition
    ...
Else
    ...
EndIf

While condition
    ...
EndWhile

condition combines comparisons with And/Or (e.g. &a = 1 And &b = 2 Or &c = 3). And binds tighter than Or (a And b Or c reads as (a And b) Or c).

Do Case: choosing a branch

Do Case
    Case &Option = "1"
        &Label = "Create"
    Case &Option = "2" Or &Option = "3"
        &Label = "Change"
    Otherwise
        &Label = "Unknown"
EndCase

Only the first Case branch whose condition is met is executed, with no fall-through to the following ones. Otherwise is optional and runs if no condition is met. There must be at least one Case.

• Conditions use the same expressions as If (comparisons with And/Or/Not).
• Any statement can be used inside a branch, including Exit and LoadRow() (the latter only where LoadRow() is valid: see DataGridView).
• It is translated to RPG select/when/other/endsl. It replaces chained nested If/Else, since WARP has no Else If.
• Case, Otherwise and EndCase (like Exit) are reserved words: they cannot be used as a field, declared variable or procedure name; they must be renamed. A Case, Otherwise or EndCase outside a Do Case gives E00327.
• A syntax error (no Case branches or no EndCase) gives E00008.

Exit: leaving a loop

While &Counter < 100
    &Counter = &Counter + 1
    If &Counter = 10
        Exit
    EndIf
EndWhile

No arguments. Leaves the innermost loop that contains it. Valid loops are For Each In Table, For Each Row, For &v = a To b and While; also the For Each that loads the DataGridView in Event Load (it stops loading rows).

• Innermost loop only: an Exit inside a While nested in a For Each leaves the While, not the For Each.
• Saving in For Each In: if the body already assigned table fields before the Exit, the compiler saves (update) the record before leaving. If a Delete() came earlier, it is not saved.
• When None and When Duplicate: the body of When None (of For Each) and of When Duplicate (of New) do not count as loops; an Exit there refers to the outer loop, if any.
• For &i = ...: &i keeps its value on exit.
• Inside a Do Case that is inside a loop it is valid.
• Procedure, Function and Event: an Exit does not leave the caller’s loop; there must be a loop in the same body. Outside a loop it gives E00326.
• Exit is a reserved word: it cannot be used as a field, declared variable or procedure name; it must be renamed. It still works as part of an @Properties/@GeneratorConfig key (e.g. Commit on Exit : True).

A complete example is in example/programs/PEXIT01.warp.

Commit / Rollback: confirm or undo changes

New In Orders
    Number = &num
EndNew
Commit
...
Rollback

No arguments. Commit confirms the changes made to tables under commitment control (RPG commit;) and Rollback undoes them (RPG rolbk;). They work in both a Program and a Screen.

Inside a For Each that modified fields of the current record, Commit first writes the pending record and then commits. Since Commit releases the record lock, assignments to the current record’s fields made AFTER the Commit in that same iteration are no longer saved (the record is considered closed). To keep modifying it, do so before the Commit or in another iteration.

Example in a Screen (with Commitment : True in @Properties):

Event 'Confirmar' 4 "Commit"
    Commit
    &Aviso = "Changes committed"
EndEvent

Event 'Deshacer' 6 "Rollback"
    Rollback
    &Aviso = "Changes rolled back"
EndEvent

• They require Commitment : True, in the object’s @Properties or in the project’s @GeneratorConfig. Without it generation fails with “Commit requiere Commitment activo (en @Properties del objeto o en @GeneratorConfig)” (same for Rollback).
• Where: valid in Program and Screen, anywhere in @Source, also inside a Procedure, an Event or a loop.
• In a Screen: with Commitment enabled, the Screen starts STRCMTCTL LCKLVL(*CHG) on startup and opens the tables it modifies under commitment control; Commit and Rollback work the same as in a Program (also inside an Event or a Procedure).
• Journal: the modified tables must be journaled on the IBM i (STRJRNPF) to be opened under commitment control. Warpgate does not journal them.
• Inside For Each In: if the body already assigned fields of the current record, Commit first saves (update) the pending record and then commits. Rollback, on the other hand, should not go inside the For Each after assigning fields, because the record is saved at the end of the iteration; place it outside the loop, after EndFor.
• Commit on Exit: Commit on Exit : True still commits only when the program ends; in a Screen, when the screen is closed (F3). With Commit on Exit : False, anything uncommitted is undone when the job ends.
• They are not reserved words: a field named Commit still works (Commit = 1).

See also Commitment and Commit on Exit.

Try / Catch: catching runtime errors

Try
    &Result = &Total / &Quantity
Catch 102
    Message("The quantity cannot be zero", Error)
Catch
    Message(Trim(ErrorMessage()), Error)
EndTry

Try … Catch [filter] … EndTry catches RPG runtime errors instead of letting them abort the program. It lowers to monitor; ... on-error ...; ... endmon;. It is valid in a Program and in a Screen, anywhere in @Source.

Catch filters (optional, on the same line):

• Order: the Catch blocks are evaluated in order and the first one that covers the error wins. A Catch without a filter must come last: if another follows it, it is error E00368 (“never runs”).
• Structure: a Try needs at least one Catch (E00367) and its EndTry (E00364).
• ErrorCode() and ErrorMessage(): only valid inside a Catch; outside they give E00366. ErrorCode() returns a number(5) with the error status (%status) and ErrorMessage() a char(80) with the message text (PSDS positions 91-170). See Builtin functions.
• An error inside a Catch is not caught by the same Try: nest another Try.
• Exit and Return are allowed inside Try and Catch.
• With Commitment: combining Catch with Rollback is useful to undo the changes when something fails.

Common status codes:

What is not caught: a screen error (session or device) is not a program error, and WARP does not generate operations with their own error indicator or (E) extender.

A complete example is in example/screens/STRY01.warp.

Procedure / Function

Procedure Name(&param)
    ...
EndProc

Function Name(&param) returnType
    ...
    Return expr
EndFunc

• Procedure (no return value, sub is a synonym): called with Do Name(expr, ...).
• Function (with a return value, type required right after the parameter list — same syntax as @Fields/@Variables): called as an expression, &variable = Name(expr, ...), type-checked against &variable.
• A parameter/return value can be struct(Template) — see Data types: Struct. The argument passed must always be a variable declared with that exact same template (never an expression nor a different template, even if it has the same members).

Call vs Do

A Screen referenced in @References/Screens is called with Call(Name, ...) exactly like a Program — typically to show it as a pop-up window (see @Properties). The called Screen can declare @Parameters just like a Program.

To send a list to another program: Call("PGM", &lines) or Call(Program, &lines) passes the dim(9999) array by reference (with the real signature if the program is in @References/Programs). The element count is not sent: the receiver reads up to the first empty line. See @Parameters: list parameters.

Print

Print("BlockName")

Prints an instance of a Block from @Layout — see @Layout. Writes 132-character lines to the QPRINT spool (OVRPRTF + open at the start, close at the end); with Print Mode: Screen the spool is also shown (DSPSPLF) and deleted (DLTSPLF) when the program finishes.

Member / Export: reports with data members

Member(Table, expr)
Export(Table, destination)

See the full guide: Reports with Member()/Export().

• Member(Table, expr): attaches a data member to Table for the whole program (ADDPFM + OVRDBF, before any open). In Program, only at the top level of @Source; in Screen, only at the top level of Event Init (see @Source: Event and Screen). At most once per table.
• Export(Table, destination): copies Table’s active member to an IFS stream file (CPYTOIMPF, comma-delimited). Only valid in Program (not in Screen); no position restriction within it.

JsonSplit: splitting a JSON into lines

JsonSplit(&json, &list [, indent])

Splits the JSON text in &json into readable lines, one per element and indented per level, and stores them in &list, replacing its contents. Useful, for example, to print the result of Json().

• 1st argument: a char/varchar &Variable or struct member, or a text literal. Any other expression gives E00301.
• 2nd argument: a list(varchar(n)) or list(char(n)) &Variable. Otherwise E00302; it cannot be an in parameter either (E00151).
• 3rd argument (optional): indentation in spaces per level, a number. Default 2; if it is not a number, E00303.
• A line is cut at every {, [ and ,, and before every } or ], as long as they are not inside quotes (\" inside texts is respected). The comma and the closing character stay together (},). Spaces outside texts are discarded.
• Maximum 9999 lines (the capacity of a list): when full, the message JsonSplit: lista llena (max 9999) is shown and the rest is discarded. A line longer than the list element is truncated. As a rule of thumb, an array of objects with 15 fields takes 17 lines per object plus 2, that is about 588 objects.

For {"epm":"X","Items":[{"Pgm":"P1"},{"Pgm":"P2"}]} with indentation 2, the resulting lines are:

{
  "epm":"X",
  "Items":[
    {
      "Pgm":"P1"
    },
    {
      "Pgm":"P2"
    }
  ]
}

Typical use to print, with a @Layout Block("Linea") that has a Label on &linea:

JsonSplit(&json, &lines)
For &i = 1 To &lines.Count()
    &linea = &lines[&i]
    Print("Linea")
EndFor

In RPG, one procedure JsonSplit_<json type>_<element type> is generated for each pair of types used. A complete example is in example/JSONSPLIT01.warp. Errors: E00301, E00302, E00303 (see Diagnostics). When replacing the content, the previous lines are cleared (see List: methods).

To convert a list(struct(...)) into fixed-width lines (and back) see Fixed-width records: FixedWidthSplit and FixedWidthParse.

Return

Return [expr]

Exits a Function. A Function must return a value: a Return without a value inside it is error E00351, and a Function with no Return carrying a value is error E00352.

@Source: Event and Screen

Statements exclusive to Screen files.

Event

Event StandardName
    ...
EndEvent

Event 'Label' KeyNumber ["Text"]
    ...
EndEvent

Two forms: standard event (bare, unquoted name) or a custom event attached to a function key (quoted name + key number, 1-24, i.e. F1-F24; F13-F24 via Shift).

Standard events

Custom events

Event 'FindCustomer' 4
    Message("F4 was pressed", Info)
EndEvent

By default, the label shown on the screen’s function-key line is the event name (F4=FindCustomer).

Key text

After the key number you can add an optional quoted text, which is what is shown on that line (F4=Find):

Event 'FindCustomer' 4 "Find"
    Message("F4 was pressed", Info)
EndEvent

• Only allowed on key-bound events (1-24); it cannot be empty or longer than 20 characters (E00344).
• If omitted, the event name is used.
• The event name becomes the name of an RPG subprocedure, so it must be an identifier (letters, digits and _, starting with a letter); otherwise it is error E00357. Text with spaces goes in the third value: Event 'Name' 6 "Text with spaces".
• The Event text takes precedence over any text declared for that same key in the project’s .warpcfg @FunctionKeys (see Project), just as the name did before.

Key color

At the end you can add a color, with or without text: Green, White, Red, Blue, Yellow, Pink or Turquoise (the same as Style):

Event 'Delete' 7 "Delete" Red
    Message("Record deleted", Info)
EndEvent

Event 'Find' 4 Blue
    Message("F4 was pressed", Info)
EndEvent

• Text and color are both optional; without text the event name is used (F4=Find in the second example).
• The key’s color takes precedence over Function Keys Color (from @Properties or @Screen). It also applies to each set of the F24 rotation.
• An invalid color gives E00347.
• Keys declared only in @FunctionKeys have no color of their own; they use Function Keys Color.

Message

Message(text, Error|Warning|Info)

Shows a message on the screen’s message line: Error (red), Warning (yellow), Info (normal text color). Shown on the next screen refresh and cleared after one cycle.

LoadRow / RefreshSelectRow / For Each Row

Exclusive to screens with a DataGridView — see the full guide: DataGridView.

CurrentInput

&Control = CurrentInput()

Returns the Name of the Input/DataGridView (from @Layout) that currently has focus. For a DataGridView, it matches if the cursor lands anywhere in its rectangle (header, attention row, or any data row), not just an exact cell. Valid in any Event, Procedure or Function of a Screen (a Procedure called from an event sees the position as well), because the driver computes the cursor position after every screen read. It is not valid in loose top-level @Source statements (they never run) nor outside a Screen: that is error E00192. If the Procedure is invoked from Event Init (before the first read), the cursor has no position yet and CurrentInput() returns empty.

Cursor

If Cursor(&Codigo)
    &Aviso = "Code help"
EndIf

It is true when the cursor is on the control bound to &Codigo, either an Input or a visible column of the @Layout’s DataGridView. Use it as a direct condition; do not combine it with = 1, since the result is already a condition.

• For an Input it compares the field’s row and column range.
• For a grid column it compares the data rows and that column’s column range. A Hidden column never matches.
• Same scope as CurrentInput(): Event, Procedure or Function of a Screen (E00192 elsewhere). If invoked from Event Init there is no position yet and it is false.
• Errors: E00336 (argument count), E00337 (argument is not a &variable), E00338 (the variable is not that of any Input or grid column).

Example inside a Procedure (see example/screens/SFOCUS01.warp):

Procedure PideAyuda()
    If Cursor(&Cod)
        &Aviso = "Code help"
    Else
        If Cursor(&Descrip)
            &Aviso = "Description help"
        EndIf
    EndIf
EndProc

Refresh and Refresh Keep: reload the DataGridView

Refresh
Refresh Keep

Argument-less statements that reload the screen’s DataGridView. The reload is not immediate: code after the Refresh in the same event keeps running, and when the driver starts its next loop the subfile is cleared and Event Load runs again.

• Refresh goes back to the first row.
• Refresh Keep keeps the row where the user was (clamped to the new total if the grid ended up with fewer rows).

Rules:

• Only valid in a Screen; in any other source type they give E00335. If the Screen has no DataGridView, they do nothing.
• They can be called from any Event or Procedure.
• They are not reserved words: an Event Refresh and a field named Refresh keep working.
• Limitation: the reload repeats the first-load sequence. A Refresh inside Event Load is evaluated again on every loop.

Example (see example/screens/SREFRSH01.warp):

Event Enter
    Refresh Keep
EndEvent

F5 behavior change

If F5 is declared in @FunctionKeys and no custom event claims it, F5 runs Event Refresh (if it exists) and then reloads the DataGridView (if the Screen has one with an Event Load). Previously it only called Event Refresh. So Event Refresh is the place to prepare data (for example, clear a filter) before the reload.

SetFocus: place the cursor

&Variable.SetFocus()

Puts the cursor on the Input whose variable is &Variable the next time the screen is shown. It is a statement: it returns no value.

• Only valid in a Screen (E00331).
• The variable must be the variable of some Input in @Layout (E00332).
• It takes no arguments (E00333).
• It is not an expression and cannot be used inside one (E00334).
• If there are several SetFocus in the same loop, the first one wins.
• It can be used in Event Init to set the initial focus.

Event Init
    &Cod.SetFocus()
EndEvent

Event Enter
    If &Cod = ""
        &Aviso = "Code is missing"
        &Cod.SetFocus()
    EndIf
EndEvent

Full example: example/screens/SFOCUS01.warp.

Implementation (for the advanced reader): the compiler writes the field’s row and column into hidden CSRLOC fields and resets them to zero after each read. On screens with a DataGridView it uses the grid’s CSRLOC fields. In popups the coordinates are relative to the window.

Builtin functions

Usable as an expression anywhere, e.g. &Username = USERID(). Most take zero arguments with a fixed return type; Val() is the exception (see its own entry).

Upper and Lower release requirement

Upper and Lower are translated to the RPG BIFs %upper and %lower, which depend on the IBM i release:

• IBM i 7.5: available natively.
• IBM i 7.3 and 7.4: only with the April 2021 PTFs. Compiler: SI76100 (7.3) or SI76101 (7.4). In addition, the runtime PTF SI76098 (7.3) or SI76099 (7.4) must be installed on every system where the program runs; without it, the program fails with MCH4437.
• IBM i 7.2 and earlier: not available.

Date, time and timestamp

Year/Month/Days/Hour/Minute/Second are polymorphic: they accept date/time/timestamp as appropriate (Year/Month/Days with date or timestamp; Hour/Minute/Second with time or timestamp) — there’s no need for a different name per type.

format (where it applies) is always optional: if omitted, it falls back to the value configured in @GeneratorConfig (Date Format/Time Format/Timestamp Format); if there’s no configuration either, the system default format is used.

Date format patterns

In StringToDate, NumberToDate, IsDate and DateToString, the second format argument accepts, besides the single keywords (Iso, Usa, Eur, Jis, Mdy, Dmy, Ymd, Jul), a literal text pattern with YYYY (4-digit year), MM and DD. Each must appear exactly once, in any order, with or without separators, and is case-insensitive. Examples: "YYYYMMDD", "DDMMYYYY", "DD/MM/YYYY", "YYYY-MM-DD", "MM.DD.YYYY".

• Resolved at compile time: the RPG extracts year, month and day with %subst at fixed positions and reads them as *iso.
• char/varchar: the value must be exactly as long as the pattern. A shorter varchar fails at runtime.
• NumberToDate/IsDate with number: the number is converted to text with leading zeros (%editc(n : 'X')) and the pattern separators do not count (a number has none). The number must have as many digits as the pattern (e.g. number(8) for "DDMMYYYY").
• DateToString: returns a char as long as the pattern (maximum 10); e.g. "YYYYMMDD" gives char(8).
• 2-digit years (YY), repeated or missing fields, and letters other than Y/M/D are not allowed: E00253 is reported.

&Date = StringToDate(&DateText, "DD/MM/YYYY")
&Date2 = NumberToDate(&Number, "DDMMYYYY")   // &Number: number(8)
&IsValid = IsDate(&Number, "YYYYMMDD")
&Text = DateToString(&Date, "YYYYMMDD")      // char(8)

Text and calculation: Replace, Contains, Pad, Translate, Abs, Sqrt, Mod

• Contains, StartsWith and EndsWith are conditions: write them directly in If, While, And or Or, like Cursor.
• Replace, Contains, StartsWith, EndsWith and Translate treat blanks in the arguments as part of the text. For a char with trailing blanks, apply Trim() before comparing.
• PadLeft and PadRight always return a char of the given width; width and fill must be literals (E00361 otherwise).
• Wrong argument count (E00358), non-text argument (E00359) and non-numeric argument (E00360) are reported with the function name.
• Sqrt of a negative number and Mod with a zero divisor are RPG runtime errors (status 00101 and 00102) that abort the program until Try/Catch exists.

&Clean = Replace(&Text, "-", " ")
If Contains(&Text, "world")
    Message("Contains the word", Info)
EndIf
If StartsWith(&Code, "AB") And EndsWith(Trim(&Code), "99")
    Message("Valid code", Info)
EndIf
&Code5 = PadLeft(&Number, 5, "0")     // "00042"
&Label = PadRight(&Name, 20)          // left-aligned, 20 characters
&Upper = Translate(&Text, "abc", "ABC")
&Rest = Mod(17, 5)                    // 2
&Absolute = Abs(&Difference)
&Root = Sqrt(&Area)

Examples

&Username = USERID()
&Program = PGNAME()
&Today = TODAY()
&CurrentTime = TIME()

&Quantity = Val(&QuantityText)

Message("Total: " + String(&Total, 9, 2), Info)

&PerPart = Int(&Total / &Parts)             // integer part: 100 / 3 -> 33
&Text1 = String(&Row, 5)                    // "    7"  (spaces)
&Text2 = String(&Row, 5, "0")               // "00007"  (zeros)
&Text3 = String(&Row, 5, "*")               // "****7"
&Text4 = String(&Amount, 6, 2, "0")         // 6 integer + 2 decimal digits, zero-filled

&Short = SubString(&Long, 1, 40)
&Clean = Trim(&WithSpaces)
&Code = Upper(Trim(&Input))
&Text = Lower(&Text)
&Size = Length(&Description)
&Pos = IndexOf("@", &Email)
&Amount = Round(&Total / &ExchangeRate, 2)
&New = Replace(&Text, "a", "b")
&Code5 = PadLeft(&Number, 5, "0")
&Rest = Mod(&Total, 7)

&DueDate = DateAdd(&Today, 30, Days)
&DaysUntilDue = DateDiff(&DueDate, &Today, Days)
&IsValidDate = IsDate(&DateText, Dmy)

&Now = Now()
&HoursElapsed = TimestampDiff(&Now, &Start, Hours)

Int and String with fill

Breaking change in String. Previously, String(n, integerDigits) padded with leading zeros. Now, by default, those zeros are replaced by spaces. To keep the old behavior, pass the fill: String(n, 5, "0").

Equivalents in generated RPG:

Sign of negative numbers

String shows the - sign of negative numbers. The sign takes one of the requested width positions, so the result still measures integerDigits + decimalDigits:

If the number uses all positions, the sign replaces the most significant digit; for negatives, request one extra position in integerDigits. Positives and zero are unchanged. Decimals still have no decimal point (12.00 with 2 decimals gives 1200). For this, the generated RPG includes a helper procedure WarpStrSign (once per program).

Int translates to %dec(expr : 30 : 0). Full example: example/programs/PNUM01.warp.

Expressions and operators

Arithmetic/concatenation operators

&Total = &Price * &Quantity
&Greeting = "Hello, " + &Username

Comparison operators

=, <>, <, <=, >, >= — used in Where, If, While.

Logical operators

And/Or combine comparisons (typically in If/While): And binds tighter than Or. Not expr negates a condition.

If &a = 1 And &b = 2 Or &c = 3
    ...
EndIf

Not (logical negation)

Not expr inverts the condition that follows it. It is a reserved word, like And and Or.

Precedence, from lowest to highest: Or, And, Not, comparisons. That is, Not binds looser than a comparison and tighter than And:

// Not &a = 1 And &b = 2  reads as  (Not (&a = 1)) And (&b = 2)
If Not &a = 1 And &b = 2
    ...
EndIf

To negate a compound condition, use parentheses: Not (&a = 1 Or &b = 2).

Not can also be used in @Layout conditions (see @Layout: conditions).

WARP has no boolean type of its own: each operand is validated like any other expression.

Implicit line continuation

In @Source, an expression or statement can span several lines without any special character. The line break is ignored in these cases:

1. After an operator: + - * /, the comparisons = <> < <= > >=, And, Or, Not, and after the = of an assignment.
2. Inside parentheses: after (, after each , and before ). This applies to function or builtin calls (DateAdd(…)), Do Proc(...), Call(...), Message(...), Member(...), Export(...), Procedure/Function parameter lists and parenthesized expressions.
3. And/Or at the start of the next line also continue the condition.

&text = "one" +
    "two"

&d = DateAdd(
    &d,
    1,
    Days
)

If &n > 1
   And &n < 10
    ...
EndIf

Additional rules:

• An arithmetic or comparison operator at the start of the next line (for example + "two") is still an error (E00008), because it would be ambiguous.
• A line cannot be continued in the middle of an identifier or a text literal.
• // comments between continued lines are ignored.
• Diagnostic line numbers remain the real ones.

Literals

• Numbers: 100, 9.5.
• Text: "text" or 'text' (equivalent).
• Date/time: obtained via TODAY()/TIME(), there’s no date literal.

Variables and fields

• Variable: always with & (&Username).
• Table field: without &, only inside a For Each/New over that table (CustCode, Name).
• list/matrix element: &Variable[index] / &Variable[row, col] (1-based).
• list method: &Variable.Method(...) (Add/Clear/Init/Remove as a statement, Count() as an expression) — see Data types: List.
• Json() method of struct, list(struct(...)) and scalar list (list(char), list(number), list(date), list(time), list(timestamp); the result is a JSON array, e.g. ["a","b"] or [1,2])
• Statement JsonSplit(&json, &list[, indent]): splits a JSON into lines — see JsonSplit.
• Fixed-width records: expression &rec.FixedWidth() and statements &rec.FromFixedWidth(&text), FixedWidthSplit(&records, &lines), FixedWidthParse(&lines, &records) — see Fixed-width records.
• struct member: &Variable.Member (read and assignment); with nested structs, by path: &Variable.Cab.Member, &Variable.Cab.List.Add(&row), &Variable.Cab.List[1] — see Data types: Struct.

Function/procedure calls as an expression

&variable = FunctionName(expr, ...)

See Builtin functions and @Source: control statements for your own Functions.

Project file (.warproj / .warpcfg)

See also the guide: Project.

.warproj — @Project

@Generator (nested inside @Project)

@Paths (nested inside @Generator)

.warpcfg — @GeneratorConfig

Top-level keys (Date Format, Print Mode, Commitment, etc.), @Screen/@FunctionKeys, and the date/time/timestamp formats are unique at the project level: they aren’t repeated per profile.

@Profile (nested inside @GeneratorConfig)

A .warpcfg declares one or more deployment profiles (typically Dev, UAT, Prod, though the name is free-form) inside @GeneratorConfig. Each @Profile "Name" groups its own @Connection, @Deployment, and @License — so a single project can point to different servers/libraries/licenses depending on the environment, without maintaining several .warpcfg files.

@GeneratorConfig {
    @Profile "Dev" {
        @Connection { ... }
        @Deployment { ... }
    }
    @Profile "Prod" {
        @Connection { ... }
        @Deployment { ... }
        @License { ... }
    }
}

Declaring at least one @Profile is mandatory: @Connection/@Deployment/@License declared directly inside @GeneratorConfig (without wrapping them in @Profile) are no longer valid (error E00290). A @GeneratorConfig with no @Profile at all gives error E00291.

How the active profile is chosen for generate/build/reverse/license-status (the validate action ignores profiles):

1. The CLI’s --profile <Name> flag, case-insensitive.
2. If omitted, Default Profile from @Project (see the .warproj — @Project section above).
3. If there’s no Default Profile either but the .warpcfg only declares one @Profile, that one is used.
4. If none of the above applies and there are several profiles declared, the compiler fails with error E00293, listing the available profiles.

Requesting a profile that doesn’t exist (via --profile or Default Profile) fails with error E00292, also listing the available profiles.

@Screen (nested inside @GeneratorConfig)

The compiler does not warn if the chosen row overlaps the @Layout: whoever moves it must leave that row free. If the keys do not fit in one line and there is no F24 rotation, the second line goes up from the chosen row.

@FunctionKeys (nested inside @Screen)

One F<n> : "Label" entry per line (n from 1 to 24, e.g. F3 : "Exit"). Attached to its own event with Event 'Name' <n> ... EndEvent in a Screen’s @Source.

Key rotation with F24. If F24 is declared here (e.g. F24 : "More keys") and no Event in the file claims it (Event 'X' 24), the Screen’s attention line can rotate. All keys are considered (those in @FunctionKeys plus those of Events with a key). If they fit in one line, there is no rotation and the line is generated as usual. Otherwise they are split into sets ordered by key number, each fitting in a single line and ending with F24=<label>. Pressing F24 shows the next set (after the last one it returns to the first); the keypress only changes the key line and does not run any event. The usable width is the screen width minus 2 columns (the window width in a popup). Without F24 declared, or with an Event on F24, the line shows all keys in one or two lines.

@FunctionKeys {
    F3  : "Exit"
    F5  : "Refresh"
    F24 : "More keys"
}

@Connection (nested inside @Profile)

How to reach the IBM i:

ssh/sftp/ftp use native clients: there’s no need to have any ssh/scp/sftp/ftp client installed on the machine running the compiler.

Examples by protocol and authentication method

SSH or SFTP with a key (ssh/sftp are equivalent: the native client uses the same transport for both):

@Connection {
    Host        : MYHOST
    User        : MYUSER
    Auth Method : key
    Key File    : ~/.ssh/id_ed25519_ibmi
    Protocol    : ssh
    Port        : 22
    Timeout     : 30
}

SSH or SFTP with a password — the password isn’t written into the .warpcfg; it’s read from the WARPGATE_PASSWORD environment variable, which must exist before opening VSCode (or the terminal the compiler runs from):

@Connection {
    Host        : MYHOST
    User        : MYUSER
    Auth Method : password
    Protocol    : sftp
    Port        : 22
    Timeout     : 30
}

FTP with a password — FTP has no concept of key-based authentication (Auth Method: key with Protocol: ftp is a validation error), so it only accepts password/interactive, both read from the same WARPGATE_PASSWORD variable:

@Connection {
    Host        : MYHOST
    User        : MYUSER
    Auth Method : password
    Protocol    : ftp
    Port        : 21
    Timeout     : 30
}

Generating the Key File

Auth Method: key needs an SSH key pair: a private one (the one Key File points to) and a public one, which must be authorized on the IBM i user profile.

1. Generate the key pair (on the machine running the compiler/VSCode, not on the IBM i):

   ssh-keygen -t ed25519 -f ~/.ssh/id_ed25519_ibmi -N ""


   This creates id_ed25519_ibmi (private — the path that goes in Key File) and id_ed25519_ibmi.pub (public). -N "" leaves the key without a passphrase, a requirement for Auth Method: key.
2. Copy the contents of id_ed25519_ibmi.pub (a single line) to the end of the .ssh/authorized_keys file inside the IBM i user’s IFS home directory (e.g. /home/MYUSER/.ssh/authorized_keys) — create the file and directory if they don’t exist. The IBM i’s SSH daemon (SSHD, from product 5733-SC1) must be active and configured to accept key-based authentication.
3. Verify that Key File in @Connection points to the private key’s path on the local machine (not the .pub one), and that Auth Method is key.

@Deployment (nested inside @Profile)

Where/how to deploy and compile on the IBM i:

@License (nested inside @Profile)

Optional block with the licensing configuration, specific to each profile — so Dev/UAT/Prod can consume different licenses or licensing services. Keys are case-insensitive. See the Licensing guide.

@License {
    Host        : "servidor01.dominio.local"
    Port        : 7443
    Fingerprint : "3f2a9c41d87b05e6a1c4f0937be2d5688a1f4c0d29e7b3a65c8d1f0e4b7a9c23"
}

Full example

See Project: .warproj and .warpcfg for a complete example with both files.

Diagnostics and error messages

The compiler reports every issue with an E##### code (e.g. E00221), a severity level, and a message — currently only in Spanish — with the concrete values interpolated.

Levels

What they look like

On the command line (human format):

[2026-07-24T21:26:47Z] ERROR E00221 (line: 12, column: 5): La variable 'x' declara char(16773105), fuera del rango permitido (1-16773104).

Or as JSON (--format json, the one the VSCode extension consumes to draw red/yellow underlines in the editor):

{"errors": [{"line": 12, "column": 5, "severity": "error", "message": "..."}]}

Some representative examples

Each message has a code, a level (error/warning) and a template with the case’s actual details ({variable}, {length}, etc.) the compiler fills in when reporting it.

Message language

The compiler embeds its message catalogs in Spanish and English, with the same codes and the same template placeholders. The language is chosen with --lang (or -g):

warpgate --action validate --lang en
warpgate --action validate -g es

• If --lang is omitted, it is taken from the LANG environment variable (for example es_PE.UTF-8 selects es).
• If LANG does not name a real language (C, POSIX or empty), en is used.
• An external resources/messages_<language>.json file next to the executable can override messages from the embedded catalog.

In VSCode, the language is controlled by the warpgate.language setting (see VSCode commands).

What the language covers

--lang does not only affect diagnostics with line/column (E*, W*). All user-facing text comes from the catalog and follows the selected language:

• CLI log lines for validation, generation, reverse engineering and deployment.
• Deployment progress and errors ([Despliegue] in Spanish, [Deployment] in English): connecting, uploading, running, etc.
• SSH/FTP/SFTP connection errors (for example, “no se pudo conectar” / “could not connect”) and transport errors.
• License messages: service denials, individual license, status (license-status) and request (license-request).
• Generation errors, such as @Connection or @Deployment not found.

These messages use the code series M00001-M00106 (in messages_es.json and messages_en.json). Unlike the E* codes, they carry no line or column.

A few internal code generator errors (invariants such as “validation should have caught this”) always remain in Spanish, as do texts coming from the operating system (for example, Connection refused (os error 111)).

When they fire

• On saving/opening a .warp file in VSCode (warpgate.validateOnSave/validateOnOpen), if there’s a .warproj resolved for that file.
• Manually with warpgate --action validate — never touches the IBM i, purely local.
• License note: validate does not require a license; generate/build/reverse do (see Licensing).
• As part of generate/build/reverse — if there are errors, code generation/deployment doesn’t proceed.

IntelliSense in VSCode

The WaRPGate extension for VSCode adds language support for .warp files:

• Syntax highlighting: sections, keywords, data types, event names, function calls, operators.
• Autocomplete (@/& as triggers): sections, @Source keywords, data types, builtin functions (with a snippet), per-section property keys, @Layout controls.
• Hover: this same book’s documentation, summarized in one line, when hovering over any keyword/function/type.
• Live diagnostics: validates on open/save (see Diagnostics), drawing red/yellow underlines directly in the editor.
• Outline/breadcrumbs: section structure and Procedure/Function as navigable symbols.
• Go to definition and document links: jump to the table/program/screen referenced in @References.
• Layout Preview: live preview of @Layout as an IBM i 5250 terminal screen (24x80 by default, or the size configured in the project’s .warpcfg @Screen).
• Commands: see VSCode commands for a screenshot example of each (Validate File, Generate, Build & Deploy, Select Project File, Reverse Engineer DDS, Preview Layout, Select Layout Block).

IntelliSense stays in sync with every new language release, so highlighting, autocomplete and diagnostics always reflect the compiler’s current capabilities.

Installation

The packaged .vsix includes the compiler binaries for all 3 platforms — there’s no need to install the compiler separately.

VSCode commands

The WaRPGate extension adds 11 commands to the command palette (Ctrl+Shift+P / F1), all prefixed with WaRPGate:. This page shows a real example of each, with screenshots.

WaRPGate: Validate File

Runs the compiler in validation mode on the active .warp file: checks syntax and semantics (types, references, undeclared variables, etc.) without generating any file. Errors and warnings show up in the “WaRPGate” output channel.

Example: a Program that assigns an undeclared variable.

@Source {
    &CodigoCliente = &Inexistente
}

WaRPGate: Generate

Runs the full compiler on the active file: validates and, if there are no errors, generates the RPGLE/DDS/CL files locally (nothing is deployed to IBM i). It’s the equivalent of the CLI’s --action generate.

WaRPGate: Build & Deploy

Generates just like the previous command and additionally uploads the files to the IBM i configured in the .warpcfg’s @Connection, to compile them there (CRTPF/CRTLF/CRTBNDRPG/CRTDSPF). Since this connects to a real system, it always asks for confirmation before continuing.

WaRPGate: Select Project File (.warproj)

When the workspace has more than one .warproj, this command picks which one to use for validating/generating/deploying. The chosen project is remembered for the other commands.

WaRPGate: Reverse Engineer DDS…

Reconstructs a table .warp file from a DDS member that already exists on IBM i. It asks, in order: the QSYS.LIB path of the table’s DDS member, the index (LF) DDS members to include in @Indexes (optional), and the name of the .warp file to generate. At the end it confirms before connecting.

WaRPGate: Preview Layout

Shows the active file’s @Layout as an IBM i 5250 terminal screen (see IntelliSense in VSCode). If the Screen uses Popup: True, the preview draws the window at its real position and size within the full screen.

Example: a popup Screen with a 3-column DataGridView.

WaRPGate: Select Active Profile (@Profile)

Available from the command palette and from the editor’s context menu on a .warp file. Opens a picker with the profiles (@Profile) declared in the active project’s .warpcfg, plus the “Use project default” option. The choice is remembered for that project (persists across VSCode restarts) and is reflected in its own status bar item (layers icon), which also opens the same picker with a click.

Without an explicit choice, the extension doesn’t send --profile to the compiler and the CLI falls back to the Default Profile declared in @Project — see Project file.

WaRPGate: Select Layout Block

When a Program (report) has more than one Block in its @Layout, this command picks which one to show in the Layout Preview — the preview always shows a single Block at a time.

WaRPGate: Request License

Asks for the name or company the license will be issued to, opens a dialog to save the request.json file, and runs --action license-request. When done, it shows the machine identifier with the Copy Machine ID (copies the identifier to the clipboard) and Reveal File (opens the file’s location in the system file explorer) buttons. Send the request.json and the machine identifier to warpgate@softwarehouse.pe.

WaRPGate: Install License

Opens a picker to choose the license.json received from Software House. It checks that the file is a license (if it is the request file or not valid JSON, it shows an error) and copies it to the path the compiler reads: %APPDATA%\warpgate\license.json on Windows, ~/.config/warpgate/license.json on Linux/macOS. If WARPGATE_LICENSE_FILE is set, that path is used.

If a license already exists at that path, it asks for confirmation before replacing it: the previous one stops being valid. When done it offers the Check Status button.

WaRPGate: License Status

Runs --action license-status and shows the license status, its expiry and the product. If warpgate.projectFile is configured, it uses that project’s @License (and the active profile, if one is selected); otherwise it checks the individual license at the default path. The full detail goes to the “WaRPGate” output channel.

For the complete request and install flow, see Licensing.

Compiler message language

The warpgate.language setting (auto | es | en, default auto) sets the language of the diagnostics shown by the compiler. The extension passes it as --lang in every compiler call. With auto, the VSCode language is used: Spanish if it starts with es, English otherwise.

This setting only affects compiler messages; it does not change the extension’s menus or hovers. See also Diagnostics.
